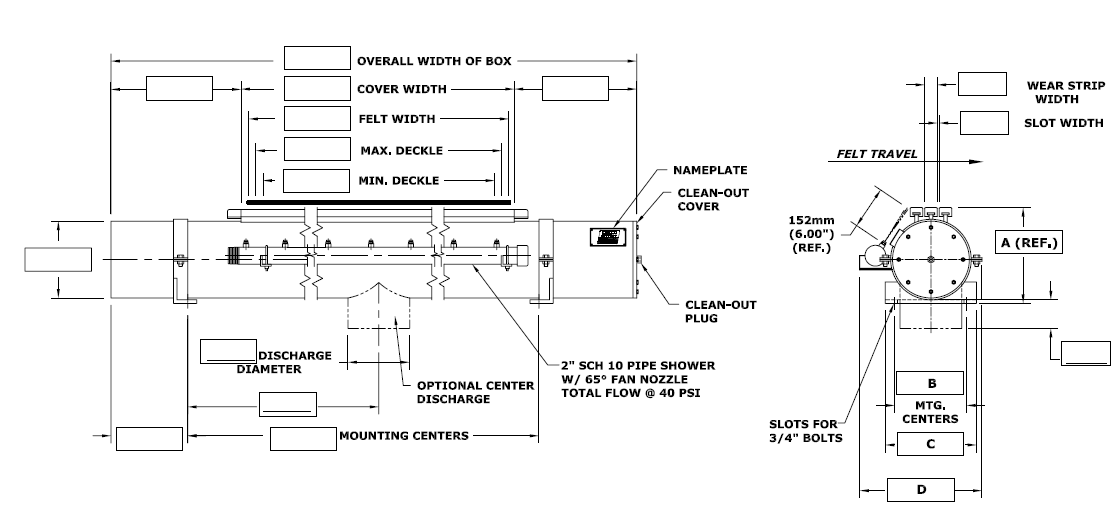

Item # |
Box Pipe Size |
Overall Box Height A |
Mounting Centers B |
Mounting Bracket C |
|---|---|---|---|---|
| 1046 | Box Pipe Size N/A 152 mm6 in | Overall Box Height A N/A 251 mm9.88 in | Mounting Centers B N/A 165 mm6.50 in | Mounting Bracket C N/A 254 mm10 in |
| 1047 | Box Pipe Size N/A 203 mm8 in | Overall Box Height A N/A 302 mm11.88 in | Mounting Centers B N/A 216 mm8.50 in | Mounting Bracket C N/A 305 mm12 in |
| 1048 | Box Pipe Size N/A 254 mm10 in | Overall Box Height A N/A 356 mm14.00 in | Mounting Centers B N/A 267 mm10.50 in | Mounting Bracket C N/A 356 mm14 in |
| 1049 | Box Pipe Size N/A 305 mm12 in | Overall Box Height A N/A 413 mm16.25 in | Mounting Centers B N/A 318 mm12.50 in | Mounting Bracket C N/A 381 mm15 in |
| 1050 | Box Pipe Size N/A 356 mm14 in | Overall Box Height A N/A 445 mm17.50 in | Mounting Centers B N/A 343 mm13.50 in | Mounting Bracket C N/A 432 mm17 in |
| 1051 | Box Pipe Size N/A 406 mm16 in | Overall Box Height A N/A 495 mm19.50 in | Mounting Centers B N/A 394 mm15.50 in | Mounting Bracket C N/A 483 mm19 in |
| 1052 | Box Pipe Size N/A 457 mm18 in | Overall Box Height A N/A 546 mm21.50 in | Mounting Centers B N/A 432 mm17.00 in | Mounting Bracket C N/A 508 mm20 in |
| 1053 | Box Pipe Size N/A 508 mm20 in | Overall Box Height A N/A 597 mm23.50 in | Mounting Centers B N/A 483 mm19.00 in | Mounting Bracket C N/A 559 mm22 in |
