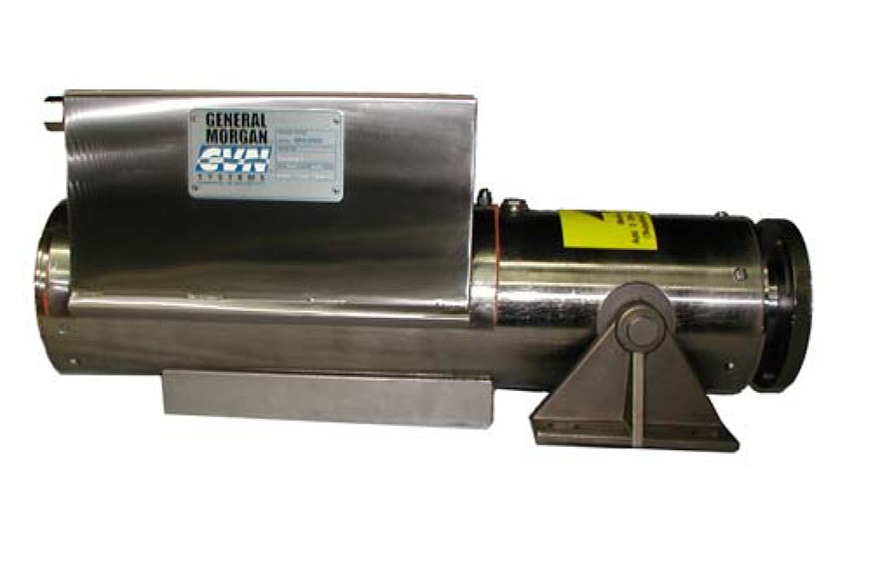

The General Morgan™ Actuator ( formerly SRA-2000) is the original model in a series of highly specialized shower actuators optimized for their respective range of applications.

The oil lubricated "Ball-Reverser" design has three balls in tracks in a ball reverser screw. The actuator can develop 1000 lbs of thrust. Length of stroke is fixed as determined by the length of screw flights installed in the unit.

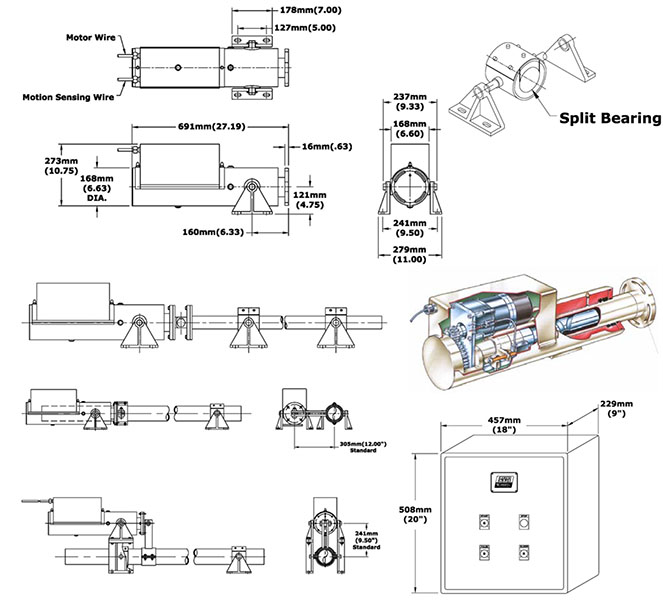

Split bearings with UHMW Polyethylene liners and anti-rotation bars keep the shower in correct position and allow removing the shower from the paper machine and replacing it again without realigning the bearings.
Unit of Measure

Specifications

Brands

 N/A General Morgan™ Vooner FloGard®

Warranty

 N/A 12 months

Standard Stroke Length

 N/A 3 in5 in6 in8 in9 in10 in12 in76.2 mm127 mm152 mm203 mm228.6 mm254 mm305 mm

Variable Direct Current (DC) Motor Speed Range

 N/A 0.07 to 10.5 in/min2 to 267 mm/min

Technical Data

Type

 N/A General Morgan™ actuator for oscillating paper machine showers to achieve complete coverage cleaning.

Manufacturer

 N/A Vooner Paper Machinery, Greeneville, TN, USA

Wetted Parts

 N/A All Wetted Parts 316 Stainless Steel (SS)

Lubrication

 N/A The General Morgan™ actuator ships with three (3) quarts 80-W-90 lubricating oil which is added by mill maintenance before installation. The actuator will not need additional lubrication during it's life.

Maintenance

 N/A None

Control Panel Height

 N/A 20 in508 mm

Control Panel Width

 N/A 18 in457 mm

Control Panel Depth

 N/A 9 in229 mm

Control Panel Alternating Current (AC) Voltage

 N/A 110 V

Control Panel

 N/A NEMA 4X, door safety switch, material fiberglass. 110 VAC power supply, start/stop buttons, Three (3) lights: start, pulse, and alarm. 4-20 ma connections for DCS.

Motor Power (Variable Speed)

 N/A 0.125 hp0.0932 kW

Motor Direct Current (DC) Voltage (Variable Speed)

 N/A 130 V180 V

Motor Current (Variable Speed)

 N/A 0.9 A

Note for Motor (Variable Speed)

 N/A An integral gear box is attached for stroke rate.

Motor Power (Fixed Speed)

 N/A 0.125 hp0.0932 kW

Motor Alternating Current (AC) Voltage (Fixed Speed)

 N/A 110 V

Motor Current (Fixed Speed)

 N/A 0.9 A

Motor Frequency (Fixed Speed)

 N/A 50 Hz60 Hz

Gear Box Ratio for 14.0 Revolutions Per Minute (rpm)

 N/A 124:1

Gear Box Ratio for 8.3 Revolutions Per Minute (rpm)

 N/A 216:1

Gear Box Ratio for 1.6 Revolutions Per Minute (rpm)

 N/A 432:1

Standard Ratios for Additional External Gearing

 N/A 180:1 300:1 600:1

Motion Sensing Alternating Current (AC) Voltage

 N/A 110 V

Proximity Switch

 N/A Note two wires from motor housing, a motor lead and a proximity switch lead clearly marked as to how to connect. A separate power connection, 110 VAC, is needed for a panel board if used.
Actuator Weight1 N/A 120 lb54.4 kg

Noise

 N/A < 80 dB

Additional Information

Additional Information

 N/A Since 1981. High reliability with thousands still running throughout the world.
  • Easy installation - in-line or parallel and available as conversion kits for your existing showers.
  • Handles any shower length.
  • Fixed speeds available without control panel and with 110 VAC motors.
  • Ideal for tough paper mill environments.
  • "Ball Reverser" design is simple, no reversing switches, no need to reverse motor, instant turn around at end of stroke.
  • Internal proximity switch provides automatic felt/fabric protection
  • High reliability, General Morgan™ drivers have an unrivalled reliability record

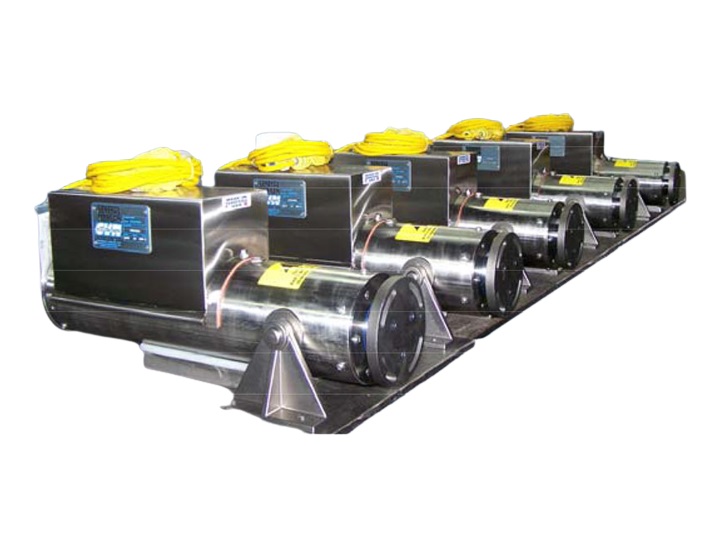

General Morgan™ (formerly SRA-2000) shower actuator, original three ball reverser introduced in 1981. Industry standard of "Complete Coverage Cleaning".

Service

Service

 N/A
  • Spare actuators, parts, and rebuild services are located in Greeneville, Tennessee.
  • Onsite technical service is available from Greeneville, Tennessee.
  • 1 Without trunnions and oil.
