EU H Series Top 3 IndustriesSingle Stage Wet Rotary Vane Vacuum Pumps

PVL/EU vacuum pumps offer high performance and quality levels. Their main features are high pumping speed in a range of absolute vacuum between 0,375 torr and 637 torr considering the wide range of PVL/EU Series. Low noise level, no pollution, air-cooled, rugged construction, easy to service. They are used for  umping air also in the presence of water vapour and for continuous industrial use. EU 47M and EU 67M versions available.

High vacuum wet rotary vane vacuum pumps

The wet rotary vane vacuum pumps of the EU H series allow to achieve higher capacity and higher vacuum levels. At 0,75 torr the pumping speed of the H series with gas ballast valve closed is 80% higher than the one of an equivalent EU standard version.

EU 105 EU 160 EU 205 EU 300 EU 650 EU 1000
Nominal pumping speed cfm 74.16 107.12 144.2 211.9 464.97 729.2
Ultimate pressure (abs) – PVL-EU torr 0.375 0.375 0.375 0.375 - 0.375
Ultimate pressure (abs) – PVLB-EUB torr 7.5 7.5 7.5 7.5 0.375 7.5
Water vapour tolerance torr 30 30 30 30 30 30
Water vapour pumping capacity lbs/h 6.6 9 11 15 50 60
Noise level dB(A) 69 72 72 73 76 81
Motor power Hp 4 5.5 7.5 10 25 40
Motor speed rpm 1800 1800 1800 1800 1200 1200
Dimensions (L × W × H) in 28.94×15.94×13.15 32.05×17.16×13.7 37.16×21.7×17.16 40.12×21.7×17.16 58.30×32.4×25.8 71.38×37.2×30.83
Total weight lbs 189.6 242.5 397 450 1349.2 2248.7

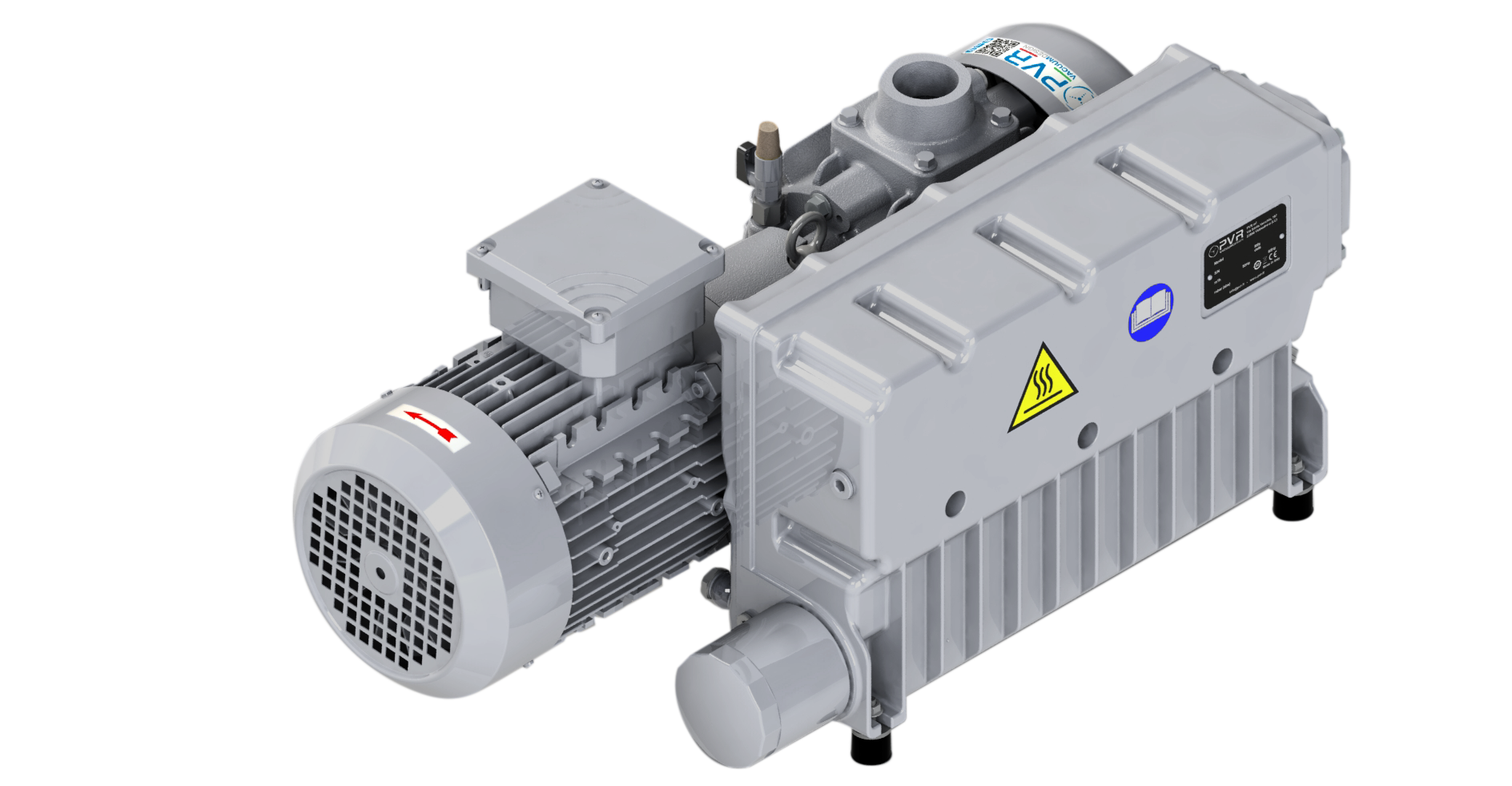

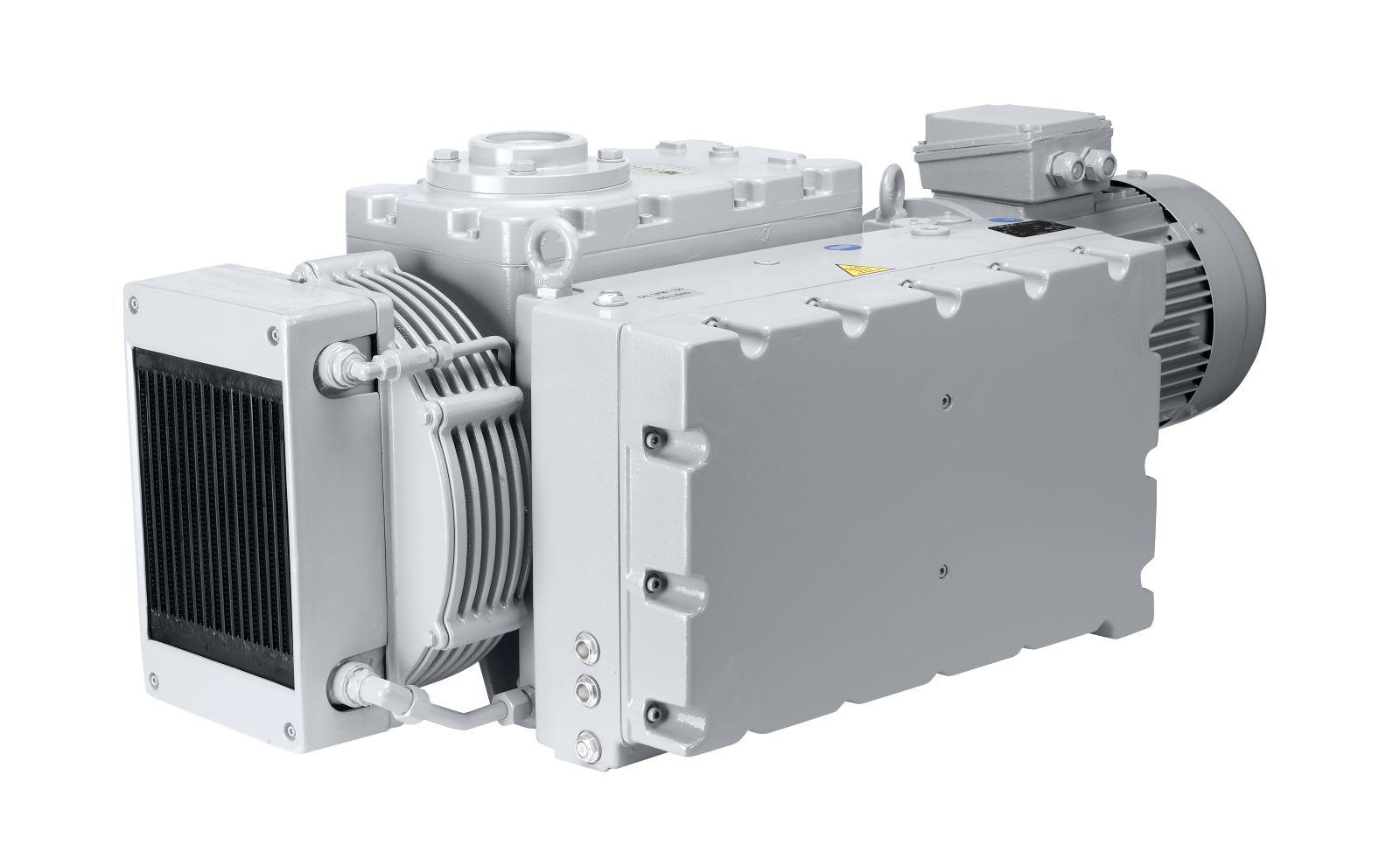

PVL 15 PVL 35 PVL 401 PVL 541 EU 47 EU 67
Nominal pumping speed cfm 12.36 14.7 294.29 390.23 32.9 47.1
Ultimate pressure (abs) – PVL-EU torr 0.375 0.375 0.375 0.375 0.075 0.075
Ultimate pressure (abs) – PVLB-EUB torr 15 15 7.5 7.5 0.225 0.225
Water vapour tolerance torr 30 30 30 30 22.5 22.5
Water vapour pumping capacity lbs/h 0.75 1.5 24 30 2.64 3.96
Noise level dB(A) 60 66 79 80 62 63
Motor power Hp 1 1.5 15 20 2 3
Motor speed rpm 1800 1800 1800 1800 1800 1800
Dimensions (L × W × H) in 16.33×10.24×8.74 18.11×10.6×10.55 57.8×26.85×20.94 57.8×26.85×20.94 22.91×12.44×11.22 27.2×13.78×12.52
Total weight lbs 59.5 93.7 703.3 795.8 108 165

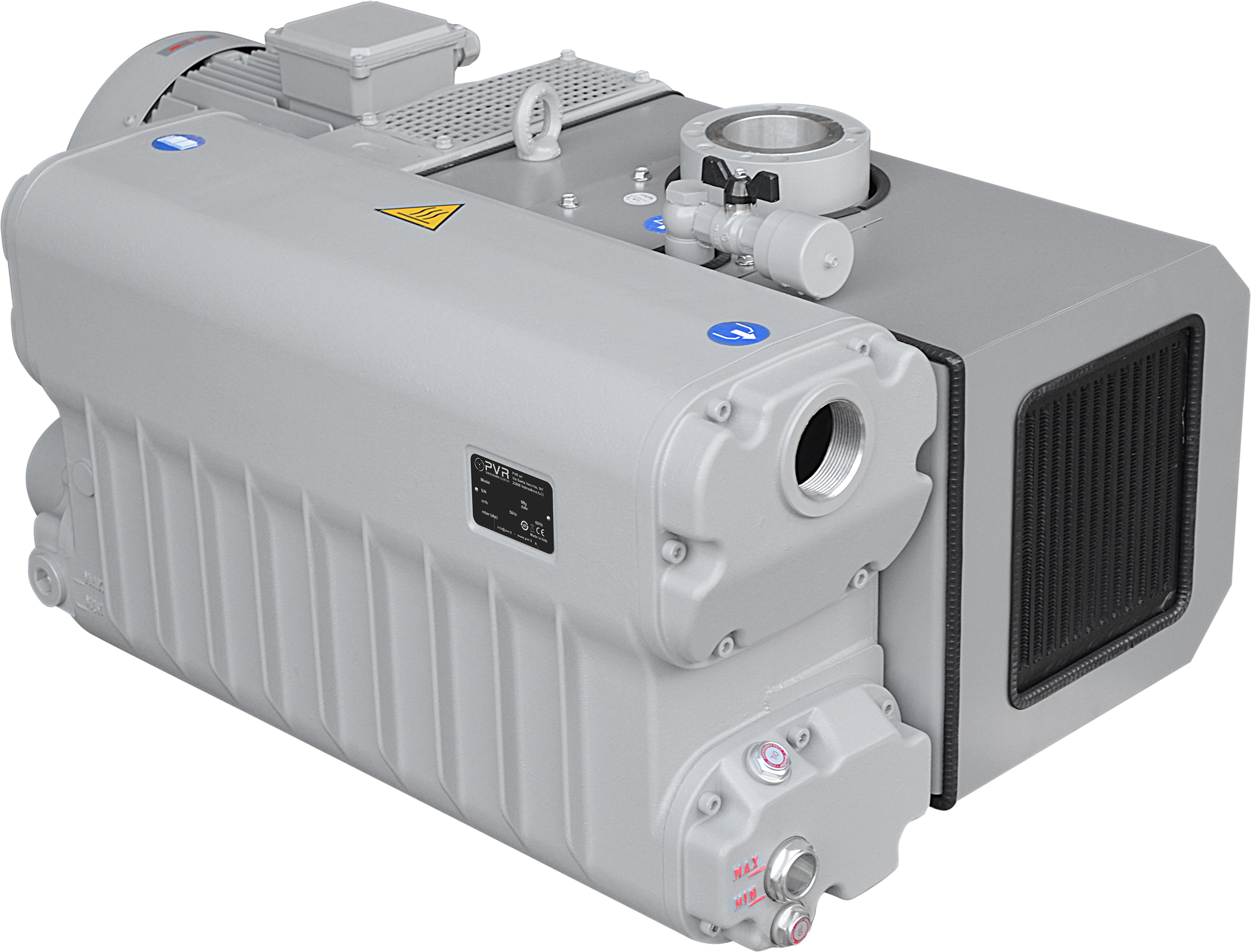

Unit EU 107 H EU 300 H EU 650 H
Nominal pumping speed cfm 76.5 211.9 464.97
Ultimate pressure (abs) – 1* torr 0.075 0.075 0.075
Ultimate pressure (abs) – 2* torr 0.375 0.375 0.375
Water vapour tolerance torr 30 30 30
Water vapour pumping capacity lbs/h 6.6 15 50
Noise level dB(A) 68 73 76
Motor power Hp 4 10 25
Motor speed rpm 1800 1800 1200
Dimensions (L × W × H) in 29.52×15.98×12.87 40.12×21.7×17.16 58.30×32.4×25.8
Total weight lbs 196.2 423.3 1349.2

1* Gas ballast closed

2* Gas ballast open
