PHV K Series

Dual Stage Wet Rotary Vane Vacuum Pumps

Dual stage wet rotary vane vacuum pumps PHV-K Series allow to achieve high vacuum and capacities, easy installation, operation and maintenance. They have been designed as backing pumps in several types of application.

The technology of dual stage wet rotary vane vacuum pumps is perfectly suited to both the medium vacuum of industrial applications and the finer one required by research applications. In fact, the wide range of models allows their use in all application areas of the market.

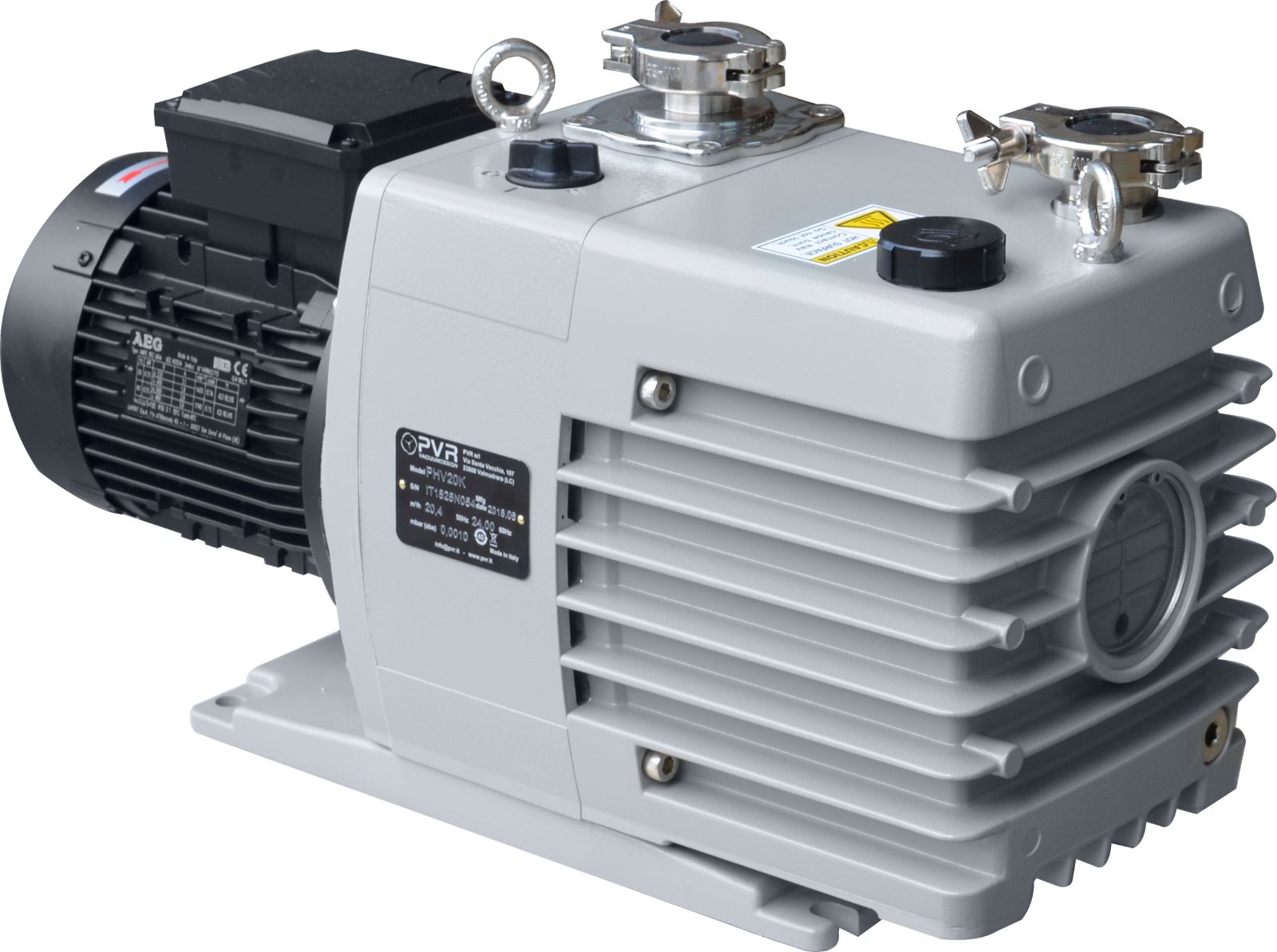

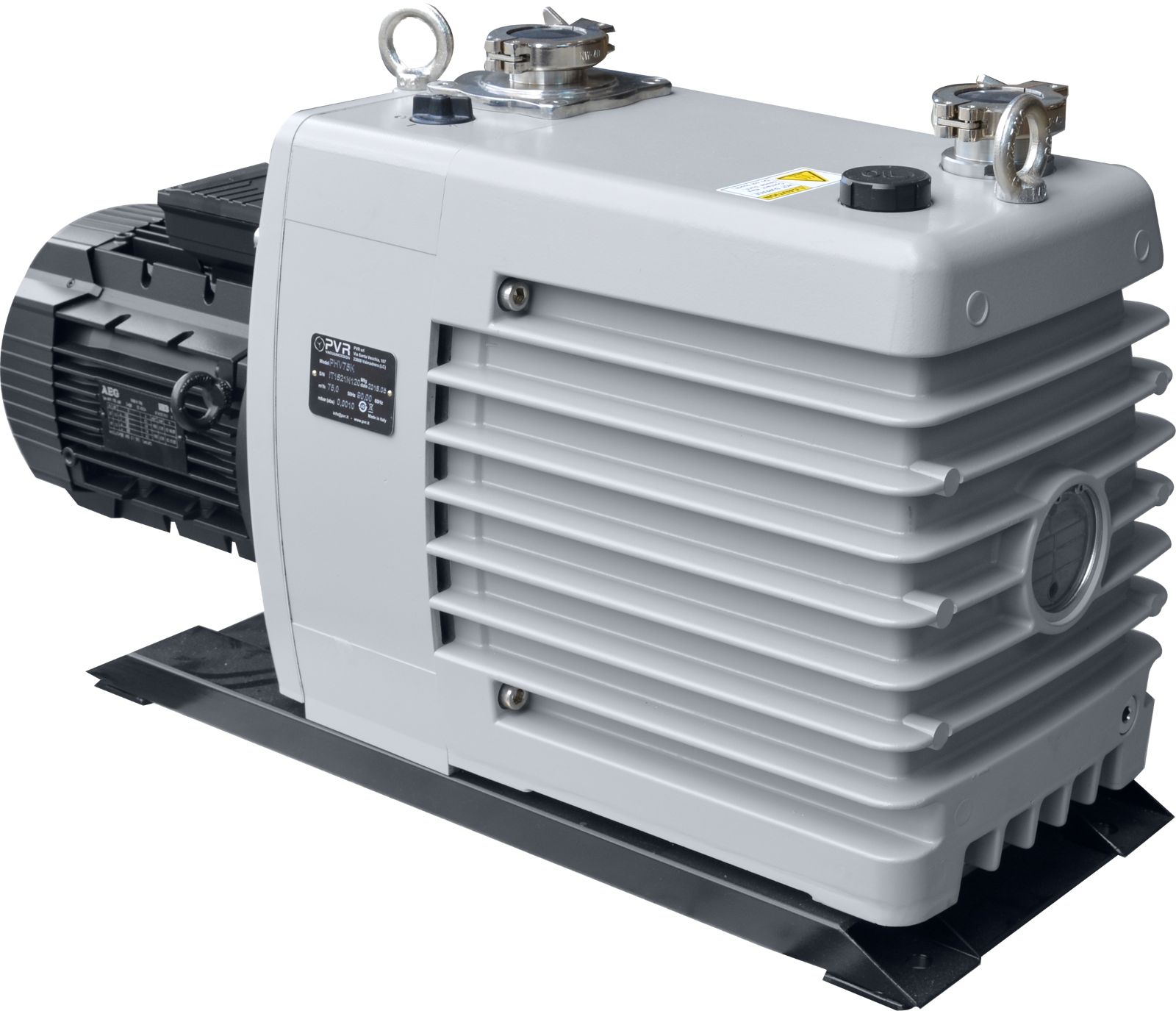

		PHV 5K	PHV 10K	PHV 20K	PHV 30K	PHV 50K	PHV 75K	PHV 150K	PHV 200K	PHV 300K

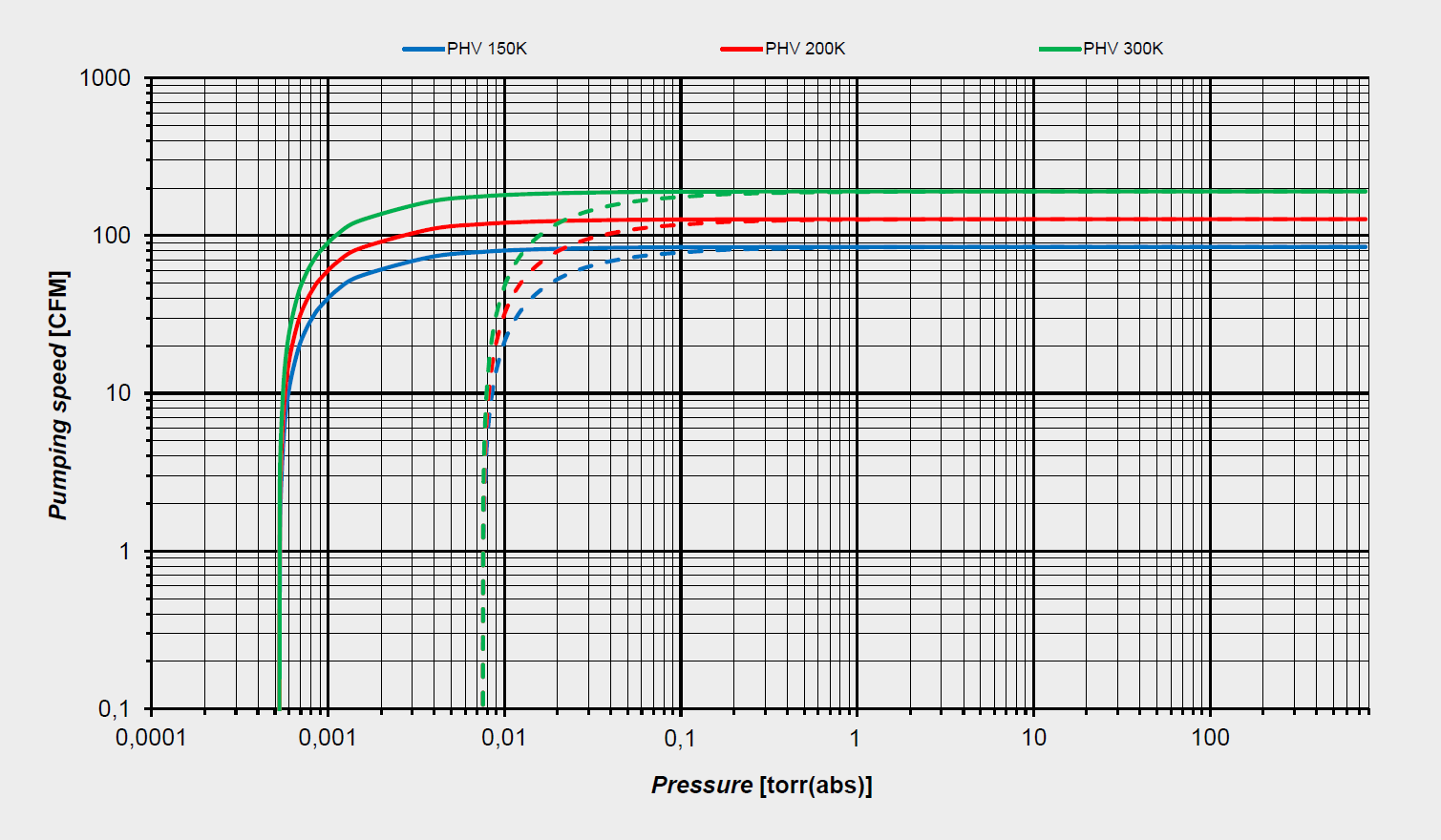

Nominal pumping speed	cfm	3,5	7	14,1	21,2	35,3	35,3	105	141	211,9
Ultimate pressure (abs) 1*	torr	≤ 5X10^-4	≤ 5X10^-4	≤ 5X10^-4	≤ 5X10^-4	≤ 5X10^-4	≤ 5X10^-4	≤ 5X10^-4	≤ 5X10^-4	≤ 5X10^-4
Ultimate pressure (abs) 2*	torr	≤ 5X10^-3	≤ 5X10^-3	≤ 5X10^-3	≤ 5X10^-3	≤ 5X10^-3	≤ 5X10^-3	≤ 5X10^-3	≤ 5X10^-3	≤ 5X10^-3
Water vapour tolerance	torr	39,8	39,8	39,8	39,8	39,8	39,8	15	26,3	15
Water vapour pumping capacity	lbs/h	0,44	0,87	1,7	2,6	4,3	6,5	3,7	4,9	4,3
Noise level	dB(A)	50	50	52	52	56	56	72	74	75
Motor power	Hp	0,5	0,5	1	1	3	3	5	7,5	10
Motor speed	rpm	1750	1750	1750	1750	1750	1750	1750	1750	1750
Dimensions (L x W x H)	in	17,8x6,7x10	18,9x6,7x10	22,9x8,3x11,3	24,2x8,3x11,3	28x9,8x14,6	31,2x11x16,3	38,6x14,2x17,7	40,5x16,9x19,1	44,4x16,9x19,1
Total weight	lbs	46	50	94,6	101,2	185,2	220,5	312,9	449,2	504,5
