HV Series
Aerzen High Vacuum boosters
Vacuum blowers HV Series have been designed for conveying air and neutral gases and are especially used in industrial high vacuum technology. With its extended range of models, a nominal capacity from 129,5 cfm to 57.092 cfm is covered. The pressure ranges from 10-3 torr up to approx. 150 torr.

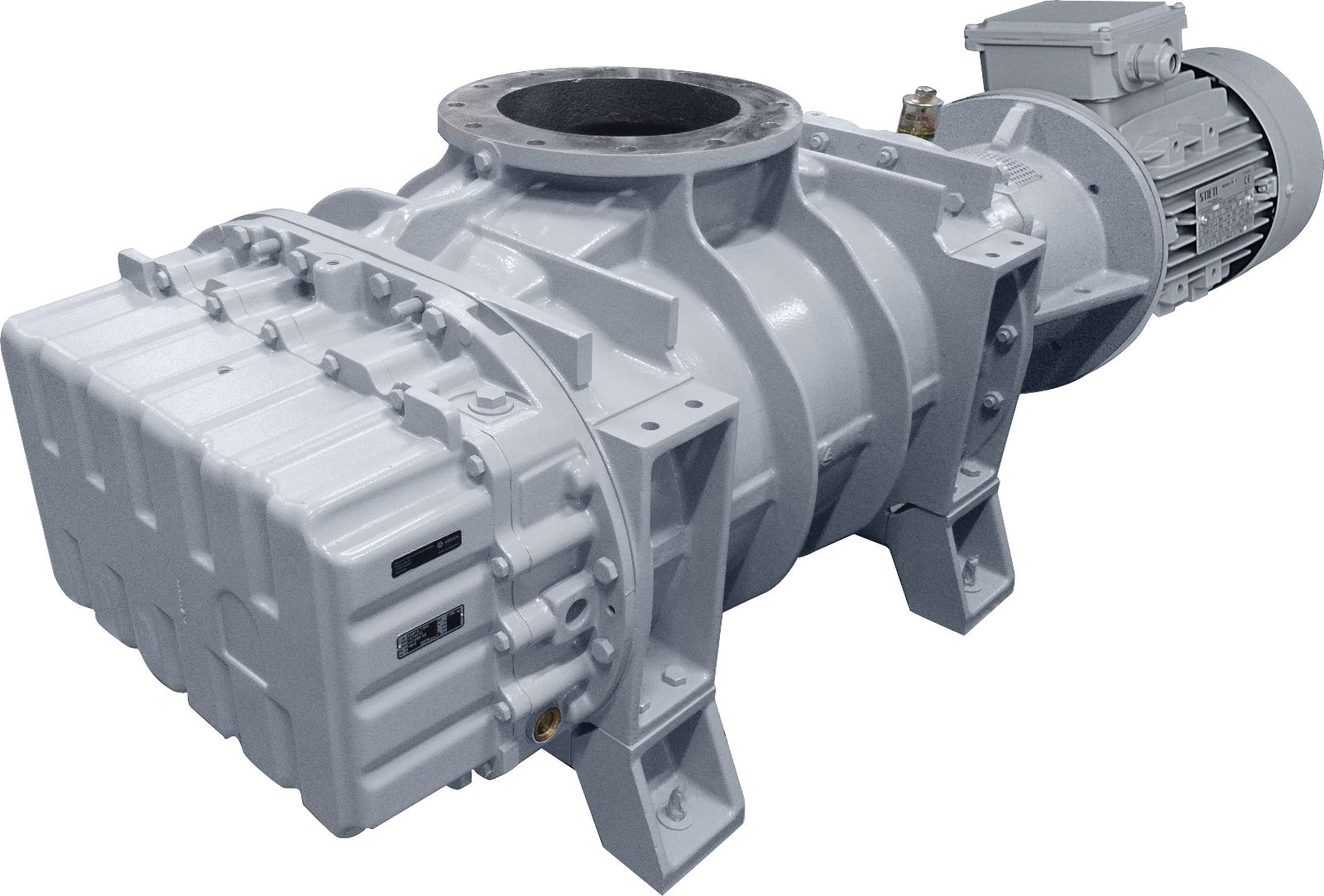

| GMa 10.0 HV | GMa 10.1 HV | GMa 10.2 HV | GMa 11.3 HV | GMa 11.4 HV | GMa 12.5 HV | GMa 12.6 HV | GMa 13.f7 HV | ||
|---|---|---|---|---|---|---|---|---|---|
| Nominal pumping speed | cfm | 129 | 176 | 265 | 353 | 530 | 706 | 1000 | 1412 |
| Δp standard motor power* | torr | 97 | 105 | 97 | 105 | 97 | 97 | 97 | 82 |
| Standard motor power | Hp | 1 | 1,5 | 2 | 3 | 4 | 5 | 7 | 10 |
| Motor speed | rpm | 3600 | 3600 | 3600 | 3600 | 3600 | 3600 | 3600 | 3600 |
| Dimensions (L x W x H) | in | 30,7x13,1x10,4 | 32,1x13,1x10,4 | 36,7x13,1x10,4 | 37,4x15,4x12,6 | 43,3x15,4x12,6 | 44x15,4x12,6 | 50,7x19,7x14,2 | 50,2x22,4x15,7 |
| Total weight (Bareshaft) | lbs | 209 | 231 | 275 | 331 | 397 | 507 | 650 | 760 |
| GMa 13.8 HV | GMb 14.9 HV | GMb 15.10 HV | GMb 15.11 HV | GMb 16.f13 HV | GMb 16.13 HV | GMb 17.15 HV | ||
|---|---|---|---|---|---|---|---|---|
| Nominal pumping speed | cfm | 2030 | 2766 | 3943 | 5297 | 5768 | 6886 | 11080 |
| Δp standard motor power* | torr | 67 | 60 | 60 | 60 | 56 | 56 | 26 |
| Standard motor power | Hp | 15 | 15 | 20 | 25 | 25 | 29,5 | 40 |
| Motor speed | rpm | 3600 | 3600 | 3600 | 3600 | 1800 | 1800 | 1800 |
| Dimensions (L x W x H) | in | 61,4x22,4x15,7 | 63,2x25,7x19,7 | 64,1x31,5x24,8 | 71,4x31,5x24,8 | 80,2x35,8x28 | 86,8x35,8x28 | 95,3x36,6x39,4 |
| Total weight (Bareshaft) | lbs | 1069 | 1279 | 1697 | 1852 | 2976 | 3086 | 5070 |

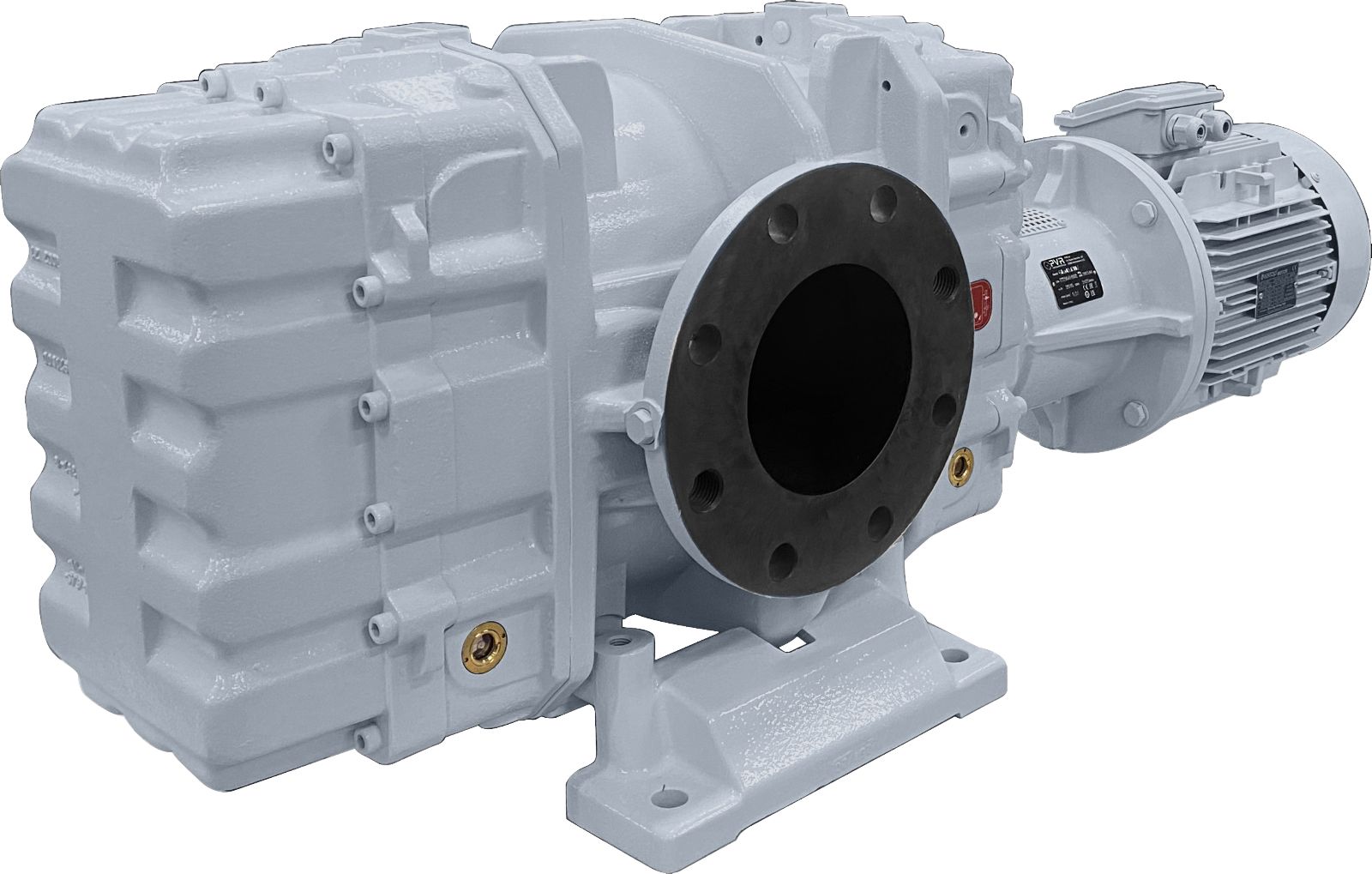

* Available in GLa-GLb version with horizontal flow
HV Special Series

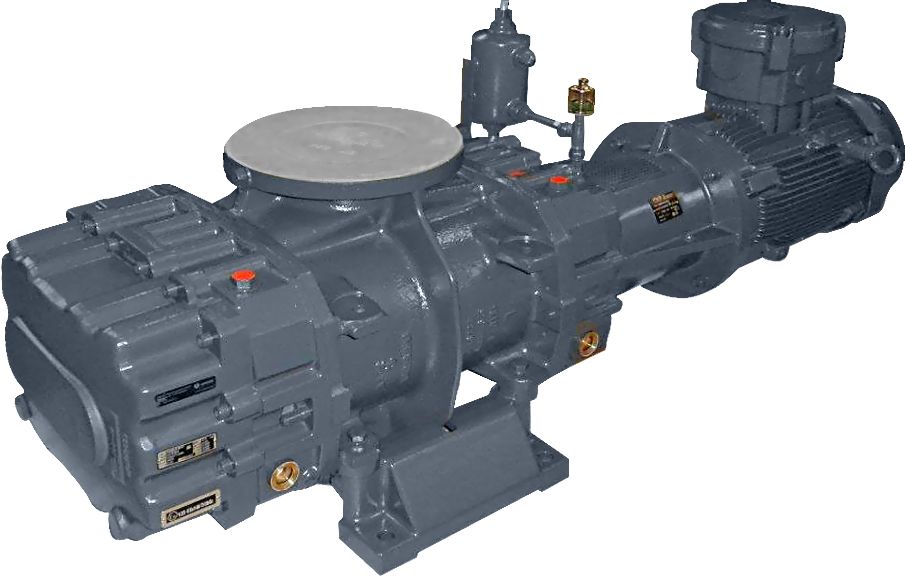

High Vacuum pumps for ATEX environments
The HV Series vacuum pumps have been approved according to EU directive 2014/34 and certified for ATEX zones 0 (internally), temperature class T3 (392° F). Certified for zone 1 externally, class of temperature T4 (275° F).
CANNED MOTOR BLOWERS
TYPE OF TECHNOLOGY: POSITIVE DISPLACEMENT BLOWERS
VOLUME FLOW: 238.972 to 9,164.502 CFM
MEDIUM: AIR, NEUTRAL GASES, TOXIC
CONVEYING: OIL-FREE
VACUUM WITH PRE-INLET COOLING
TYPE OF TECHNOLOGY: POSITIVE DISPLACEMENT BLOWERS
VOLUME FLOW: 147.15 to 35,904.6 CFM
MEDIUM: AIR, NEUTRAL GASES, COMBUSTIBLE , TOXIC, EXPLOSIVE , CORROSIVE, MIXED , OXYGEN
CONVEYING: OIL-FREE
