GVK Series
Compact Vacuum Systems
Compact vacuum systems have been designed for those customers who need to couple vane vacuum pumps with pumps for high vacuum. This solution allows them to reach higher nominal capacities with higher ultimate pressure (up to 5 x 10-3 torr).
Designed to Offer the Customer a Lot of Advantages
The compact design also simplifies the configuration with different types of accessories such as air filters, filter water traps, inverter, control panels and solenoid valves for gas ballast management.
- Small footprint
- Easy installation thanks to the reduction in size and weight
- Easy access to all system components
- Efficiency and ergonomics during maintenance phases, reducing time and costs
- Improved performance thanks to combination with EU H or HWT series pumps

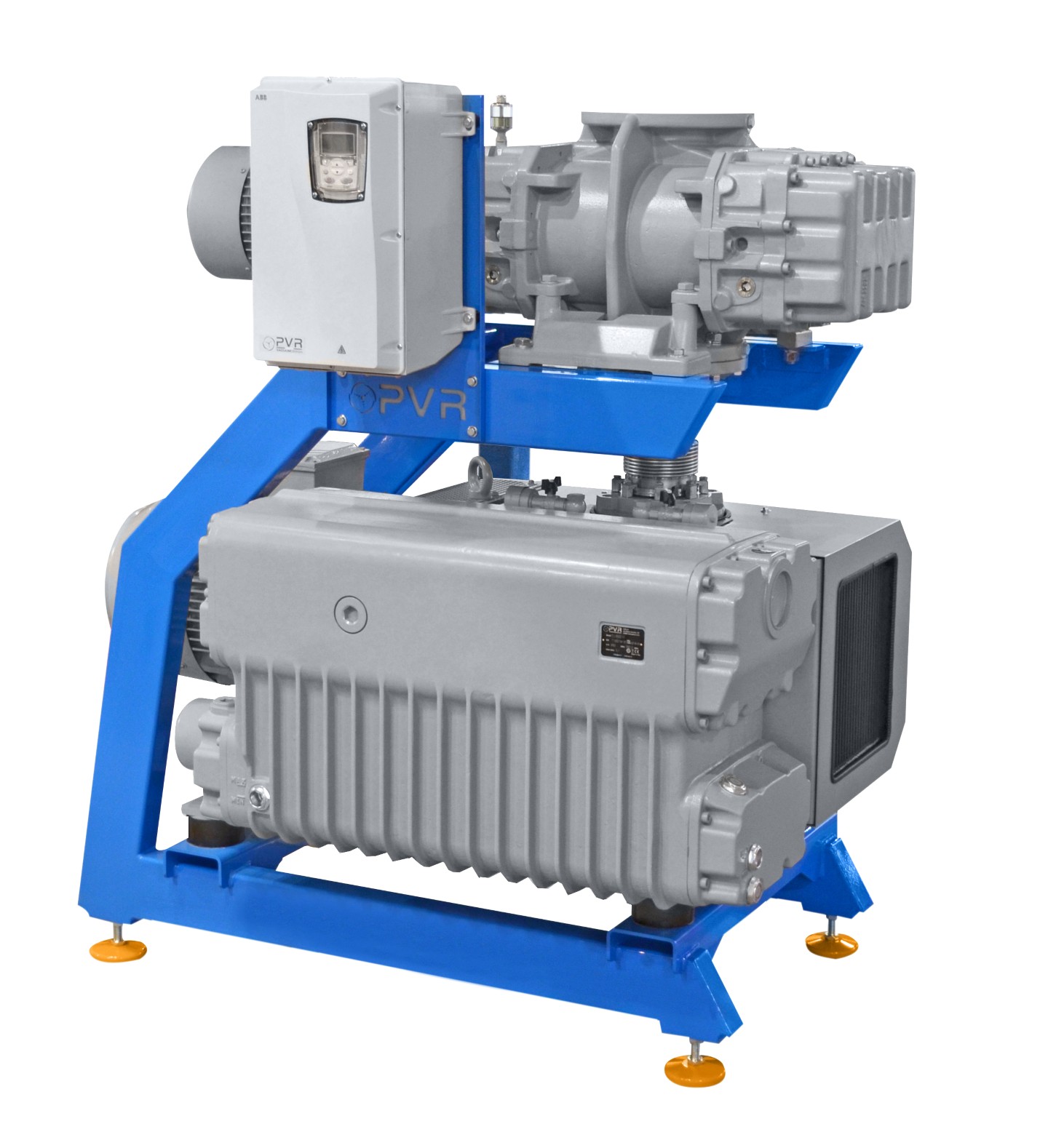

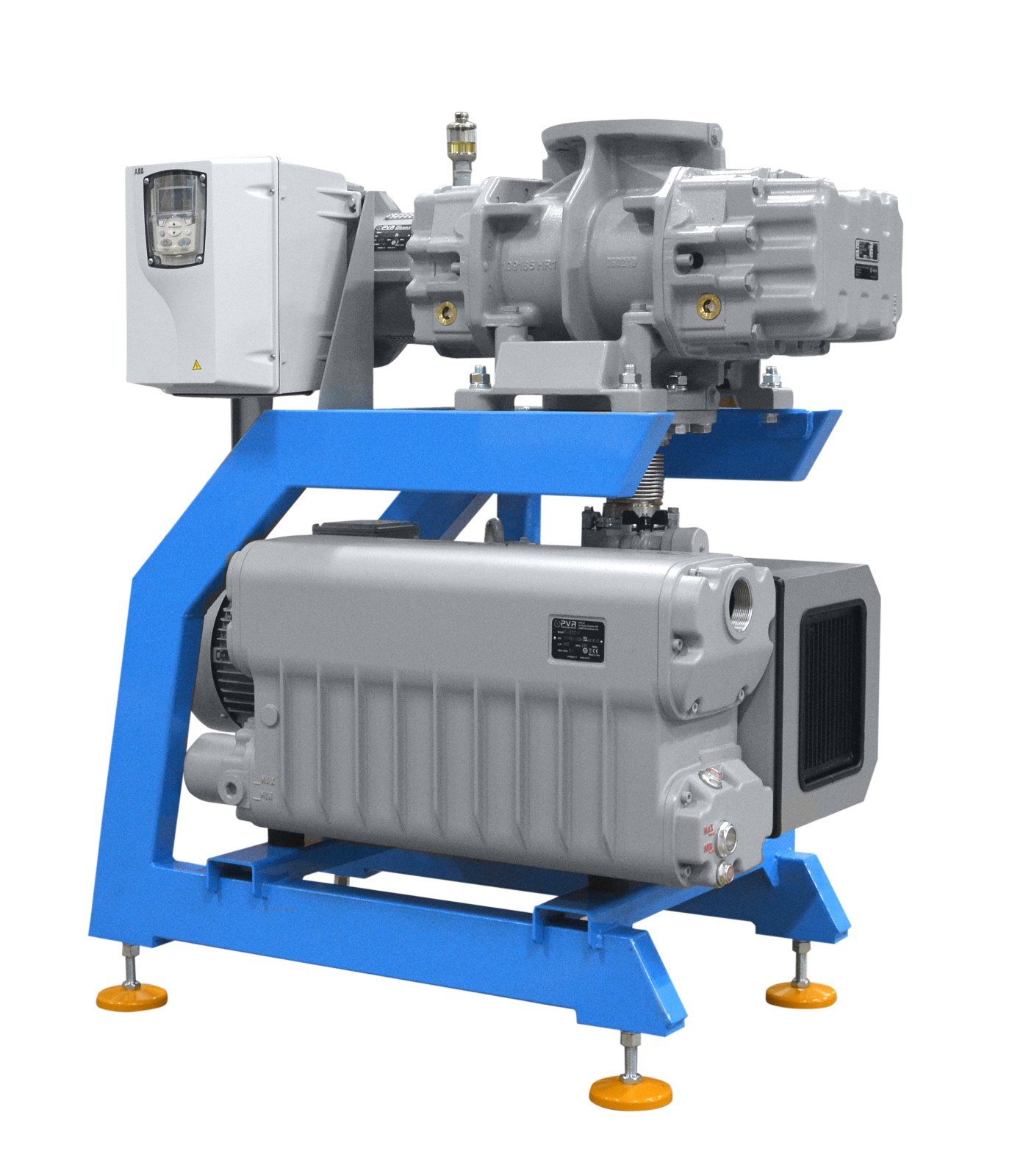

| GVK 11.3 S300 H | GVK 11.4 S300 H | GVK 12.5 S300 H | GVK 12.6 S300 H | GVK 13.f7 S650 H | GV 13.8 S650 H | ||
|---|---|---|---|---|---|---|---|
| Pump type | GMa11.3HV EU300 H | GMa11.4HV EU300 H | GMa12.5HV EU300 H | GMa12.6HV EU300 H | GMa13.f7HV EU650 H | GMa13.8HV EU650 H | |
| Nominal pumping speed | cfm | 353 | 530 | 706 | 989 | 1412 | 2048 |
| Ultimate pressure (abs) 1* | torr | ≤ 5x10-3 | ≤ 5x10-3 | ≤ 5x10-3 | ≤ 5x10-3 | ≤ 5x10-3 | ≤ 5x10-3 |
| Ultimate pressure (abs) 2* | torr | ≤ 1,5x10-2 | ≤ 1,5x10-2 | ≤ 1,5x10-2 | ≤ 1,5x10-2 | ≤ 1,5x10-2 | ≤ 1,5x10-2 |
| Motor power | Hp | 3+10 | 4+10 | 5+10 | 7+10 | 10+25 | 15+25 |
| Noise level | dB(A) | 76 | 76 | 76 | 76 | 80 | 80 |
| Dimensions (L x W x H) | in | 39,4x26,9x45,6 | 39,4x26,9x45,6 | 44x26,9x47,2 | 50,7x26,9x47,2 | 57,1x39,4x60,8 | 61,9x39,4x60,8 |
| Total weight | lbs | 915 | 981 | 1091 | 1235 | 2414 | 2722 |
*Dimensions subject to variations depending on the type of motor.
1* Gas ballast closed
2* Gas ballast open
Systems with dry screw pumps are also available in combination with pumps for high vacuum. Special versions with final vacuum up to 5×10-4 torr .
