GC GV Series top 3 industriesCompact Vacuum Systems

Given the proven performance and reliability of our oil lubricated vacuum pumps and HV pumps for high vacuum, we have designed compact pumping groups that conveniently combine high performance and a reduced footprint. GC vacuum systems can be supplied with an electric control panel compliant with EC standards, inlet filters and process control accessories. The systems with bypass valve (GC-BP) allow the high vacuum pumps to be started at atmospheric pressure. The GC systems are also available in the version regulated by VFD (Variable Frequency Drive).

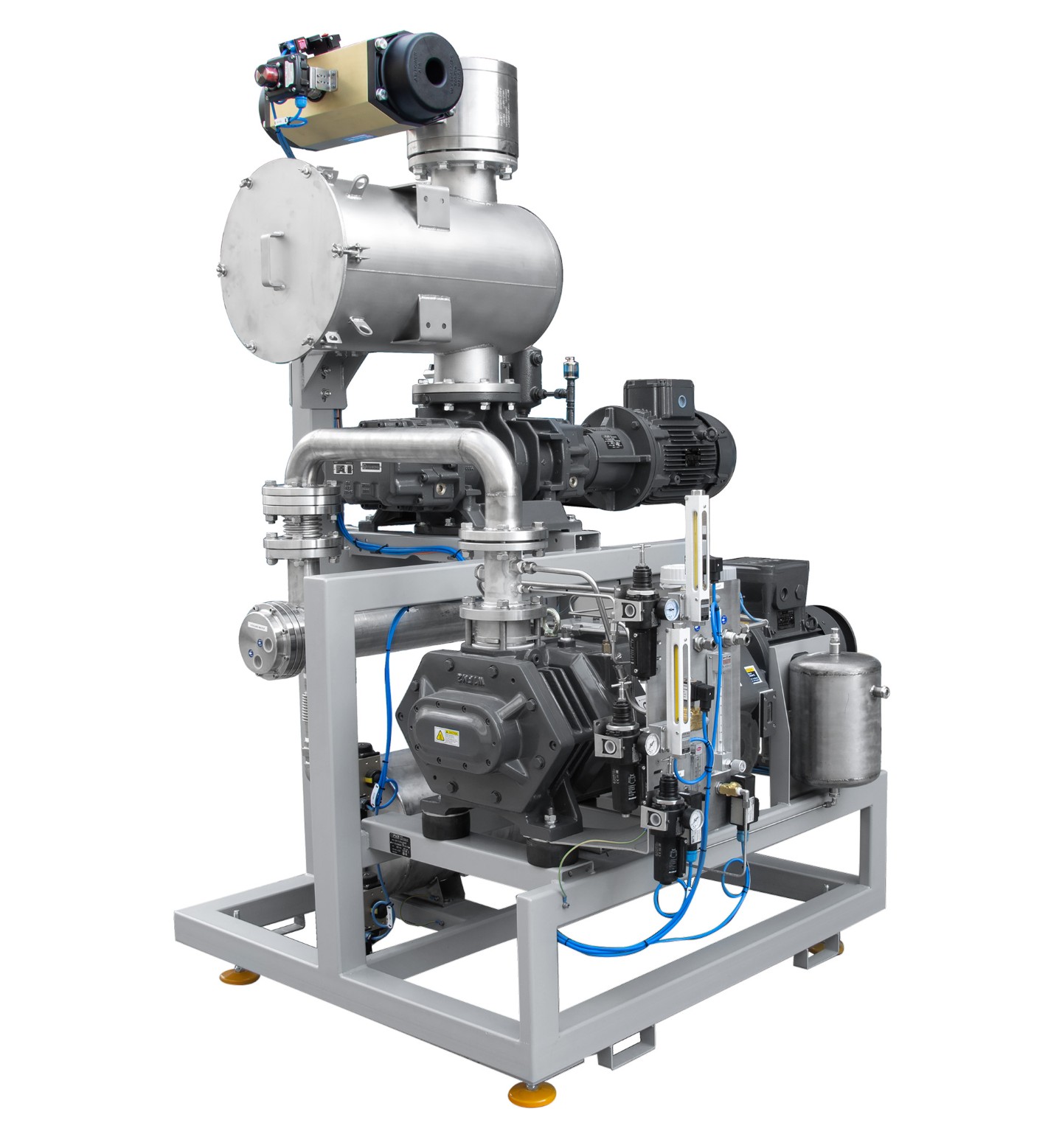

GV Series

Vacuum systems are designed for customers who need to couple primary vacuum pumps to high vacuum pumps. This solution allows the system to achieve high suction capacity and a high degree of vacuum within a very small footprint. Technical features of the system can be designed according to the customer requirements.

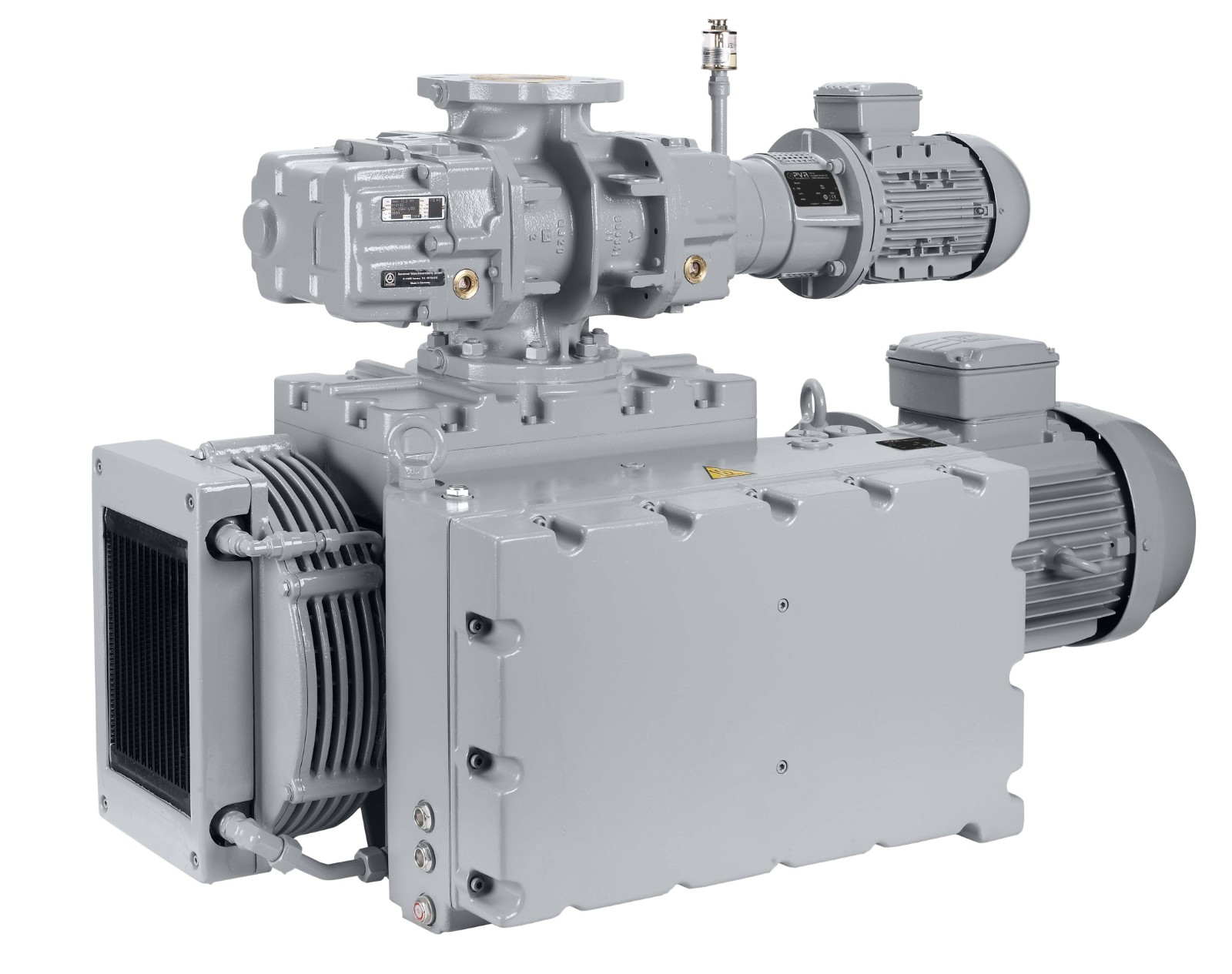

GC-GV 11.3-401 GC-GV 11.4-541 GC-GV 12.5-401 GC-GV 12.6-541
Pump type (1) GMa11.3HV GMa11.4HV GMa12.5HV GMa12.6HV
(2) PVL401 PVL541 PVL401 PVL541
Nominal pumping speed cfm 319 462,6 606,2 847,6
Ultimate pressure (abs) torr ≤ 1,5 x 10-2 ≤ 1,5 x 10-2 ≤ 1,5 x 10-2 ≤ 1,5 x 10-2
Motor power Hp 2,9+14,7 4+20 5,36+14,7 7,3+20
Noise level dB(A) 80 80 80 81
Total weight lbs 1045 1183,9 1298,5 1415,4

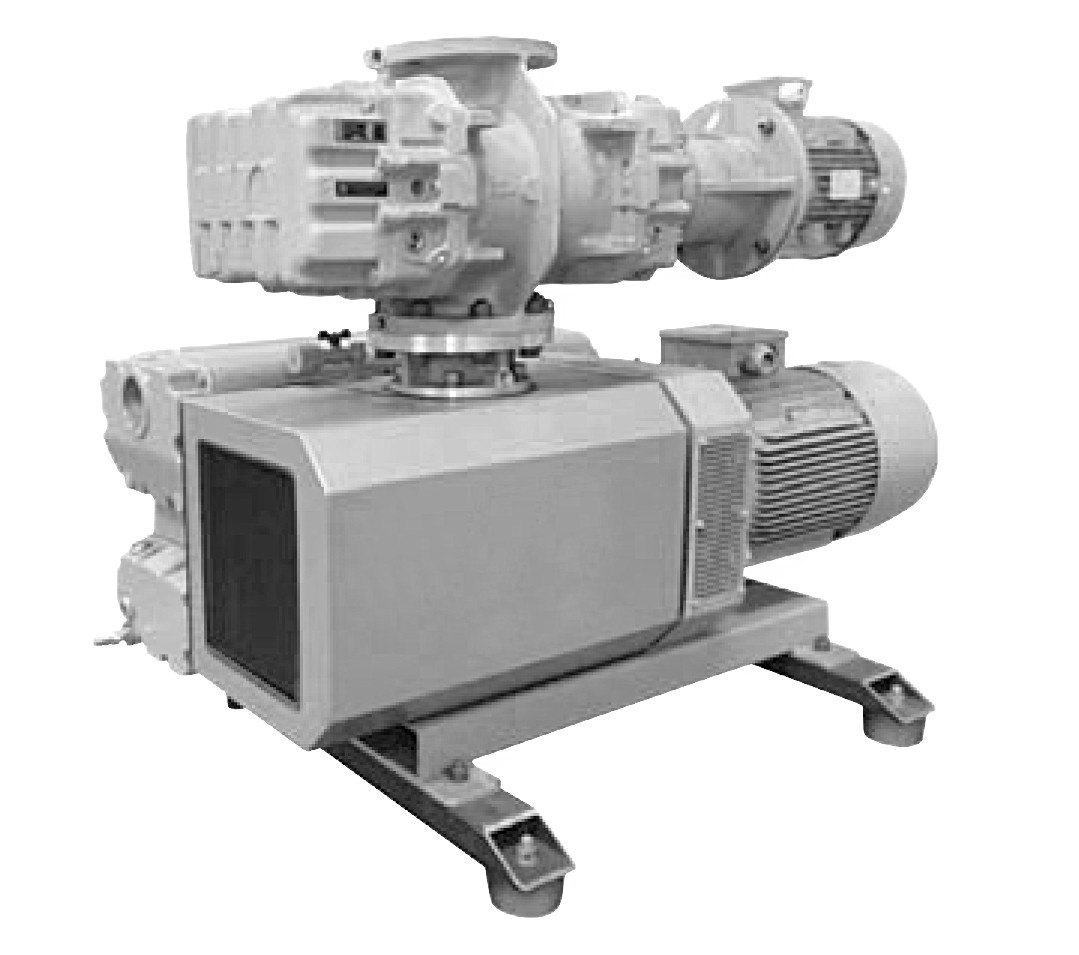

GC-GV 12.6-650 GC-GV 13.f7-650 GC-GV 13.8-650 GC-GV 12.5BP-401 GC-GV 12.6BP-541
Pump type (1) GMa12.6HV GMa13.f7HV GMa13.8HV GMa12.5HV/BP GMa12.6HV/BP
(2) EU650M EU650M EU650M PVL401 PVL541
Nominal pumping speed cfm 1012,4 1412,6 2039,4 606,2 847,6
Ultimate pressure (abs) torr ≤ 1,5 x 10-2 (≤ 5,3x10-3) ≤ 1,5 x 10-2 (≤ 5,3x10-3) ≤ 1,5 x 10-2 (≤ 5,3x10-3)* ≤ 1,5 x 10-2 ≤ 1,5 x 10-2
Motor power Hp 7,3+24,8 10+24,8 14,7+24,8 4+14,7 5,36+20
Noise level dB(A) 78 79 80 80 81
Total weight lbs 2063,5 2171,6 2511,1 1296,3 1490,3
