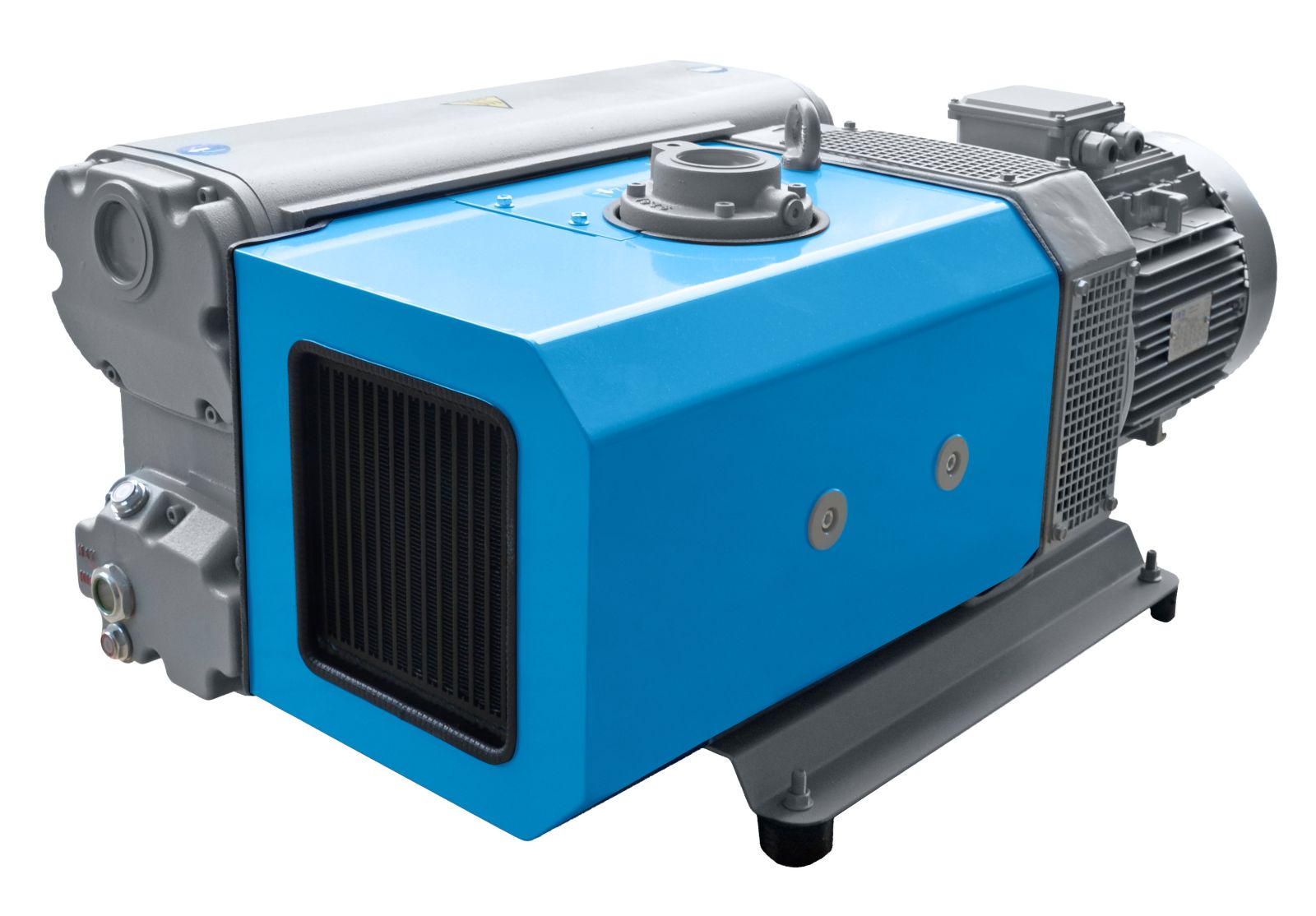

EU 300 F HWT EU 160 HWT
EU 300 F HWT EU 160 HWT

Single Stage Wet Rotary Vane Vacuum Pumps with High Water Tolerance

  • Only pump on the market that handles more water vapor
  • Twice the water vapor pumping capacity of other rotary vane pumps.
  • Huge savings on maintenance & repairs
  • Protects pump from wash boarded cylinders, breaking vanes and constant oil changes.

HWT pumps offer superior performance and quality levels in applications with a high concentration of vapors in suction, which can condense inside the pump body. Their main features are: increased gas ballast capacity and higher vapour tolerance. They are especially designed for pumping fluids in the presence of large quantities of vapours.

HWT technology

This unique design makes the EU Series of wet rotary vane vacuum pumps the only one in the world capable of handling larger quantities of water vapour while ensuring optimal ultimate pressure performance. All this means huge benefits for the customers such as low maintenance costs, lower lifecycle costs, high productivity, longer lifetime of pumps and components, reduction of lubricant disposal costs and respect for the environment.

Parameter Unit EU 47 HWT* EU 67 HWT* EU 107 HWT EU 160 HWT EU 205 HWT EU 300 HWT EU 650 HWT
Nominal pumping speed cfm 33 47 77 107 144 212 467
Ultimate pressure (abs) torr 0.6 0.6 0.6 0.6 0.6 0.6 0.6
Water vapour tolerance torr 60 60 90 80 80 80 28
Water vapour pumping capacity lbs/h 5 8 24 24 27 36 50
Noise level dB(A) 62 63 68 72 72 73 76
Motor power Hp 2 3 4 6 8 10 25
Motor speed rpm 1800 1800 1800 1800 1800 1800 1200
Dimensions (L × W × H) in 23×12×11 27×14×13 30×16×15 32×17×14 37×22×17 40×22×17 58×32×26
Total weight lbs 108 165 196 243 397 450 1349

* EU 47M HWT and EU 67M HWT versions available

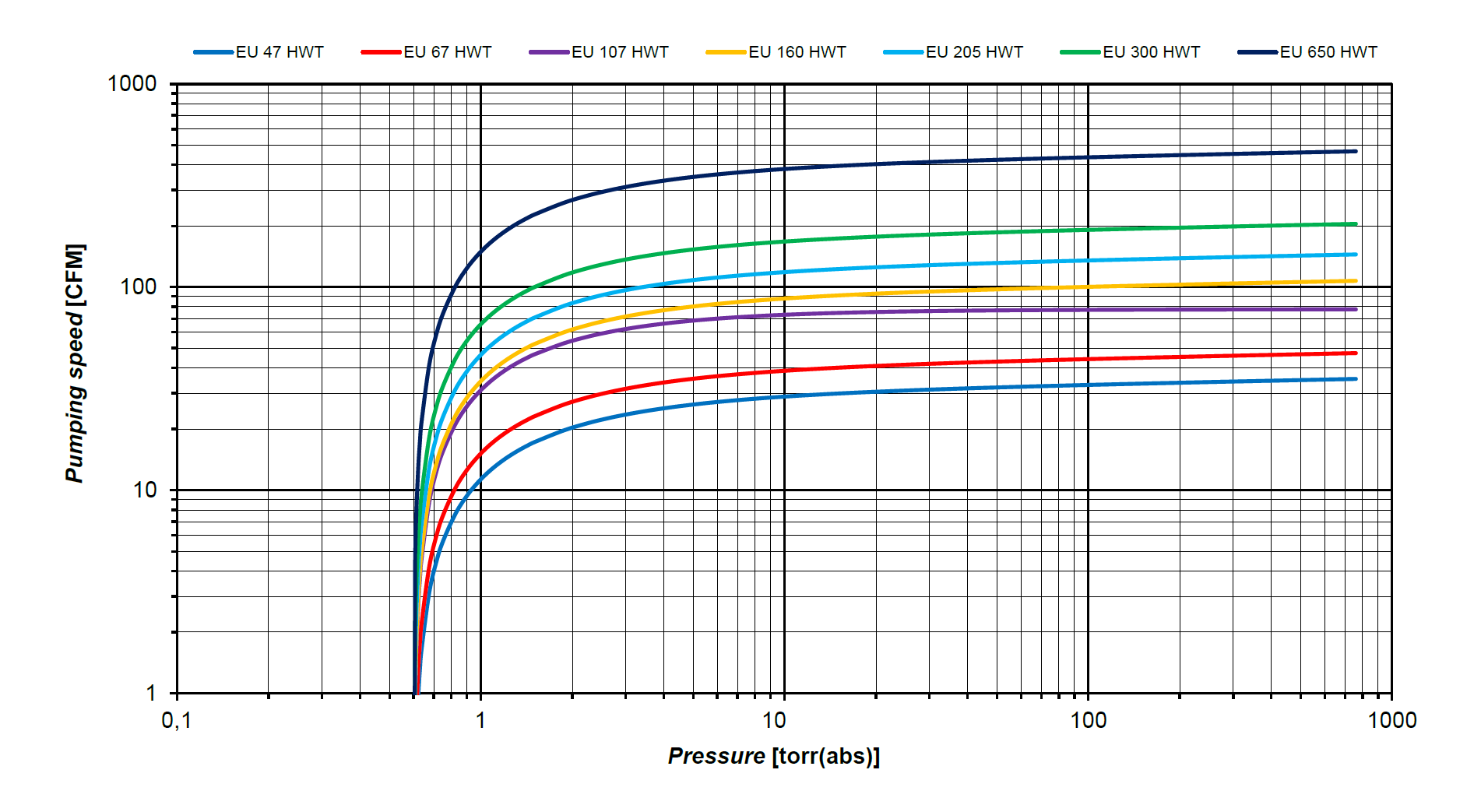

EU HWT Series Table

Specifications subject to change without notice.
