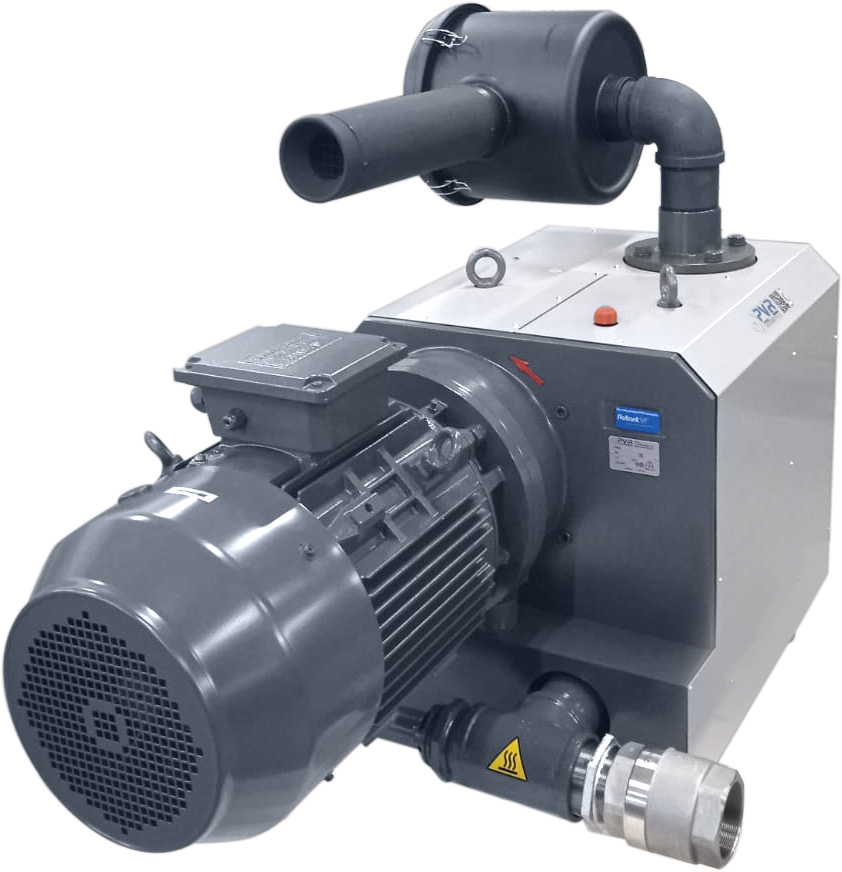

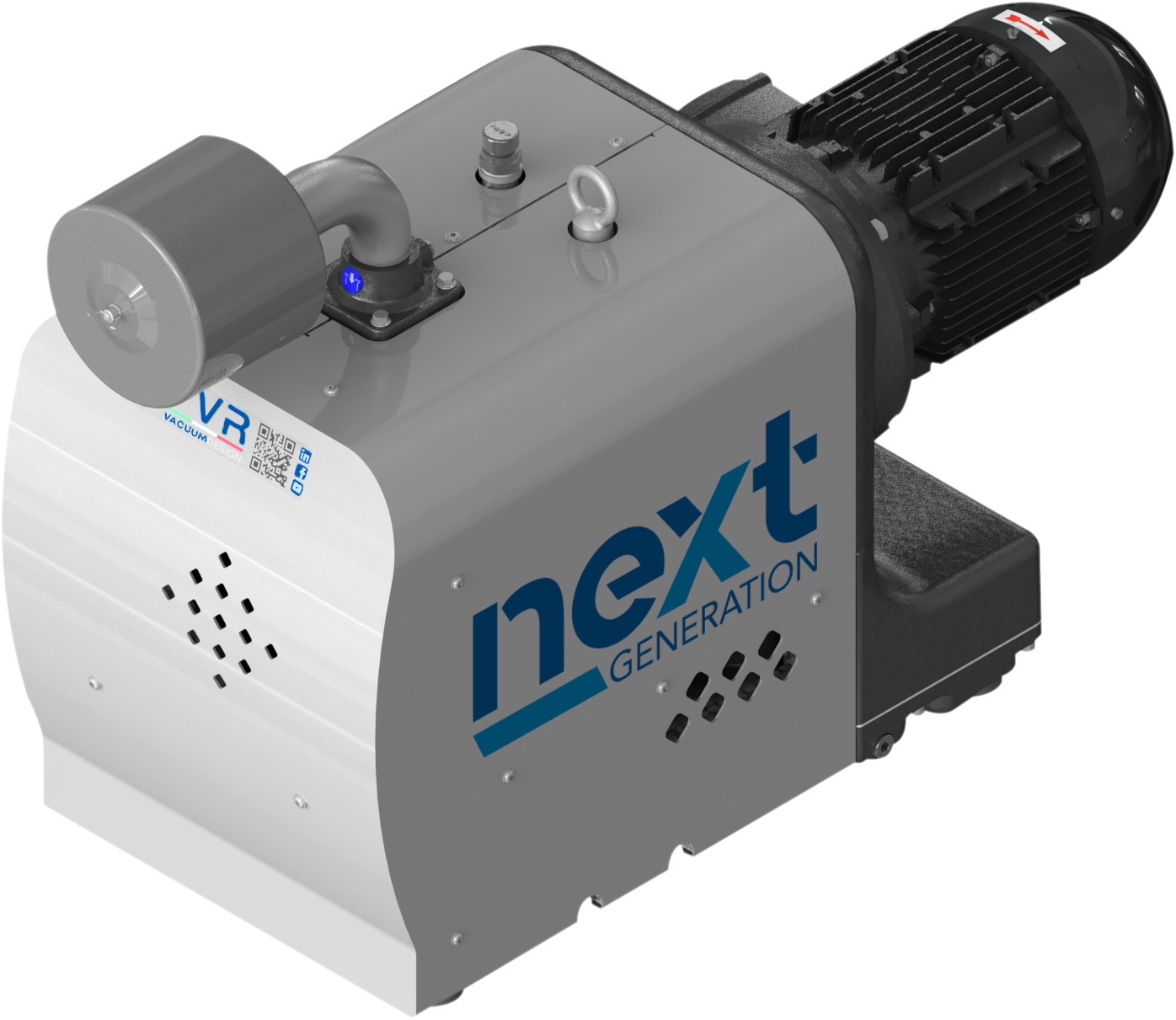

DRY C 157 P rear DRY CR 500
DRY C 157 P rear DRY CR 500

Dry Claw Compressors

DRY C – CR P compressors are dry compressors with two claw-shaped rotors which are running with synchronized rotation by means of a pair of gears. The compression chamber is free of lubricating or sealing fluids.

Dry Claw Technology

Designed to avoid contaminating applications and processes. These pumps are suitable for any application even in the most challenging conditions thanks to their robustness, simplicity and contaminant handling capability. Dry C guarantees minor lifecycle costs, high productivity, low energy consumption, simple operation and control, maintenance free.

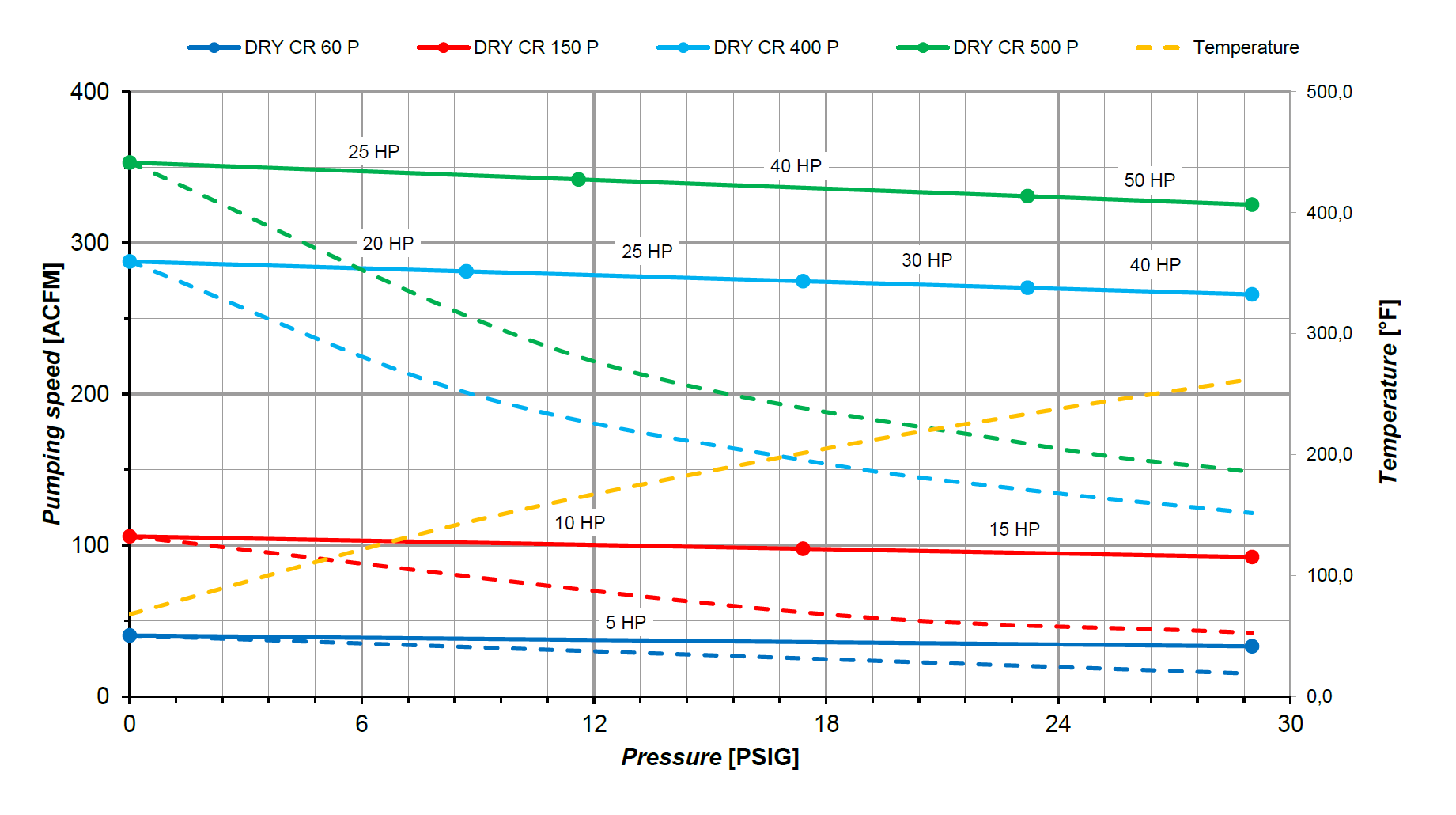

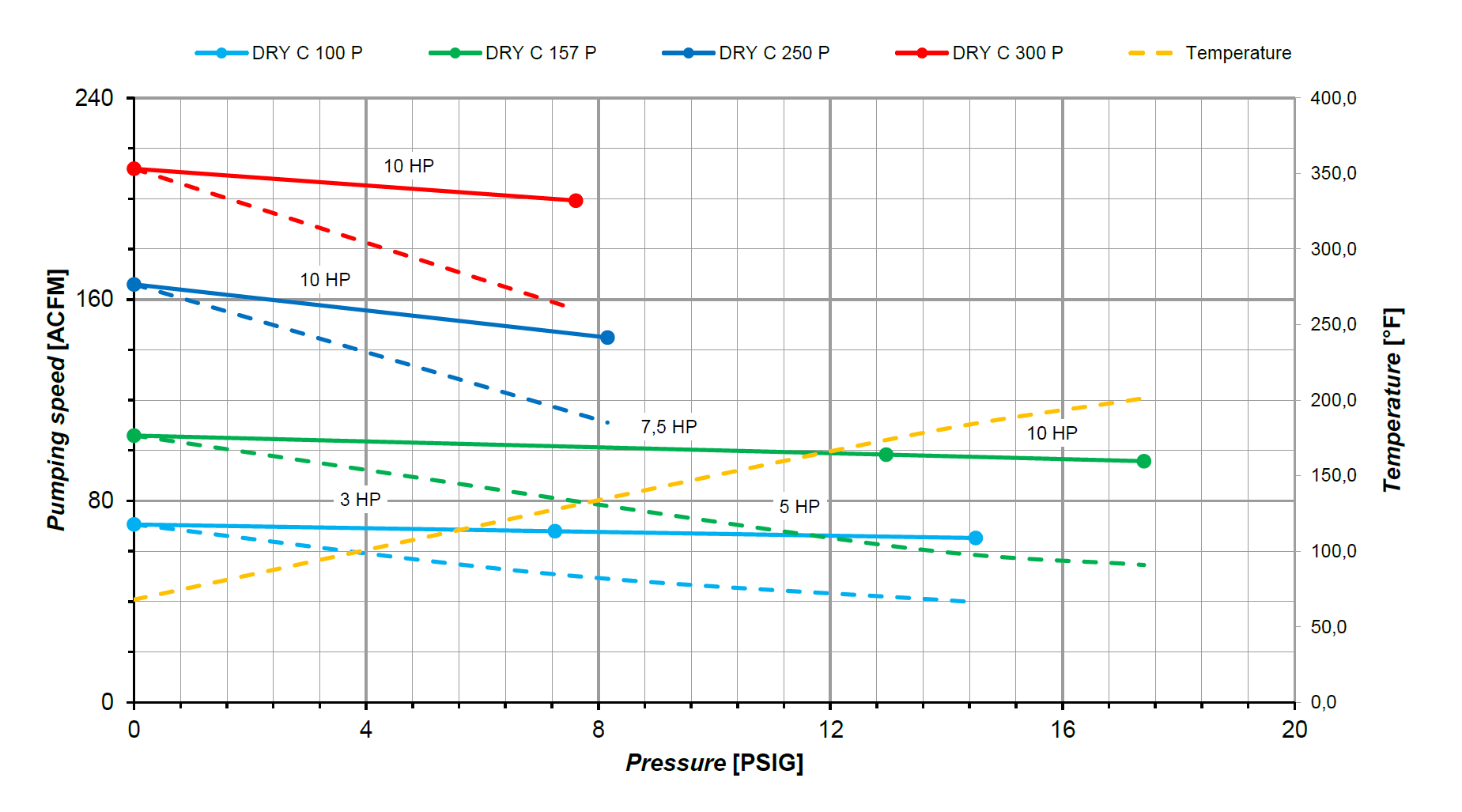

DRY C 100 P DRY C 157 P DRY C 250 P DRY C 300 P DRY CR 60 P DRY CR 150 P DRY CR 400 P DRY CR 500 P
Nominal pumping speed cfm 70,6 105,9 166 212 40 105,9 282,5 353,1
Ultimate pressure (G.) PSIG 7,25 / 14,50 13 / 17,4 / 34,7 8,2 7,6 29 17,4 / 29 8,7 / 17,4 / 23,2 / 29 11,6 / 23,2 / 29
Sound pressure level with Silencer dB(A) 78 80 80 81 79 82 82 83
Motor power Hp 3 / 5 7,5 / 10 / 15 10 10 5,3 10 / 12,3 20 / 24,8 / 29,5 / 40 25 / 40 / 50
Motor speed rpm 3600 3600 3600 3600 3450 3450 3450 3450
Dimensions (L x W x H) in 29,3 / 30,4 x 16,7 x 15,8 37,1 / 41,1 / 41,1 x 26,3 41 x 29,1 x 20,9 41,5 x 29,1 x 20,9 32,2 x 11,7 x 18,1 41,9 x 17 x 25,3 54,8 x 26,5 x 40,6 56,9 x 26,5 x 40,6
Total weight lbs 231,5 / 246,9 386 / 397 / 531 677 708 165 380 / 525 790 / 802 / 814 / 828 1003 / 1015 / 1032
