CSKZ/CDKZ/CTKZ Series

Compact Central Vacuum Systems

PVR offers a wide range of central vacuum systems including vessel and either one, two or three vacuum pumps. COMPACT AND MODULAR our central vacuum systems are offered with horizontal or vertical vessel, to optimize the footprint. Customized central vacuum systems with different characteristics than those shown in the standard catalogue are available on request.

Compact and Modular Vacuum Systems

PVR designs and manufactures compact and modular vacuum systems capable of offering a series of qualified solutions for the most demanding customers of the industrial sector, offering a rapid delivery time and an extremely reliable product.

Advanced control and supervision logic
Touch-screen operator panel
Possibility of remote controls and signals
Possibility of connections to corporate networks, VPNs and cloud
Data transmission with standard protocol (ModBus TCP/IP, RTU, …)
Compact systems with integrated tank / bypass / electric control panel

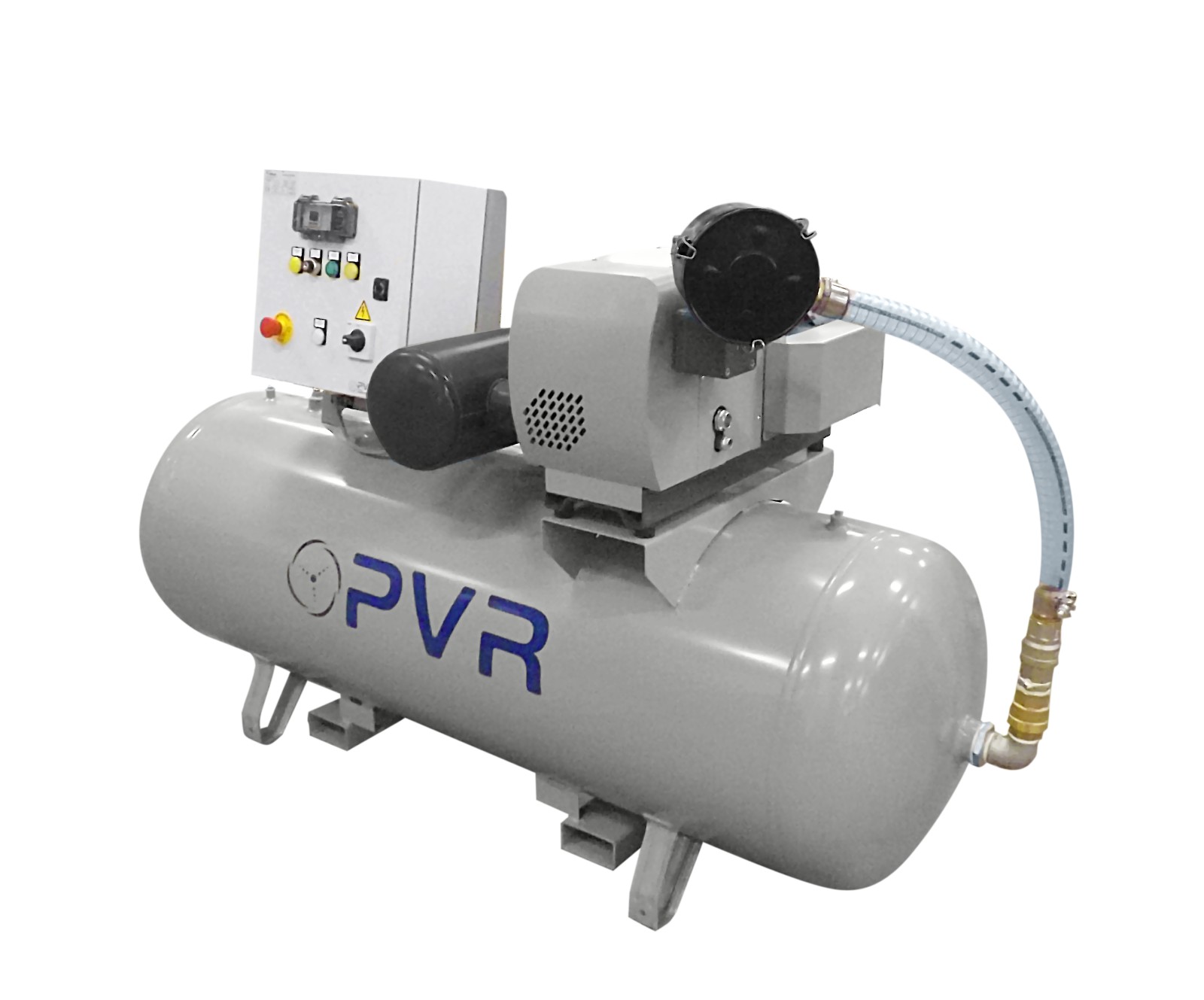

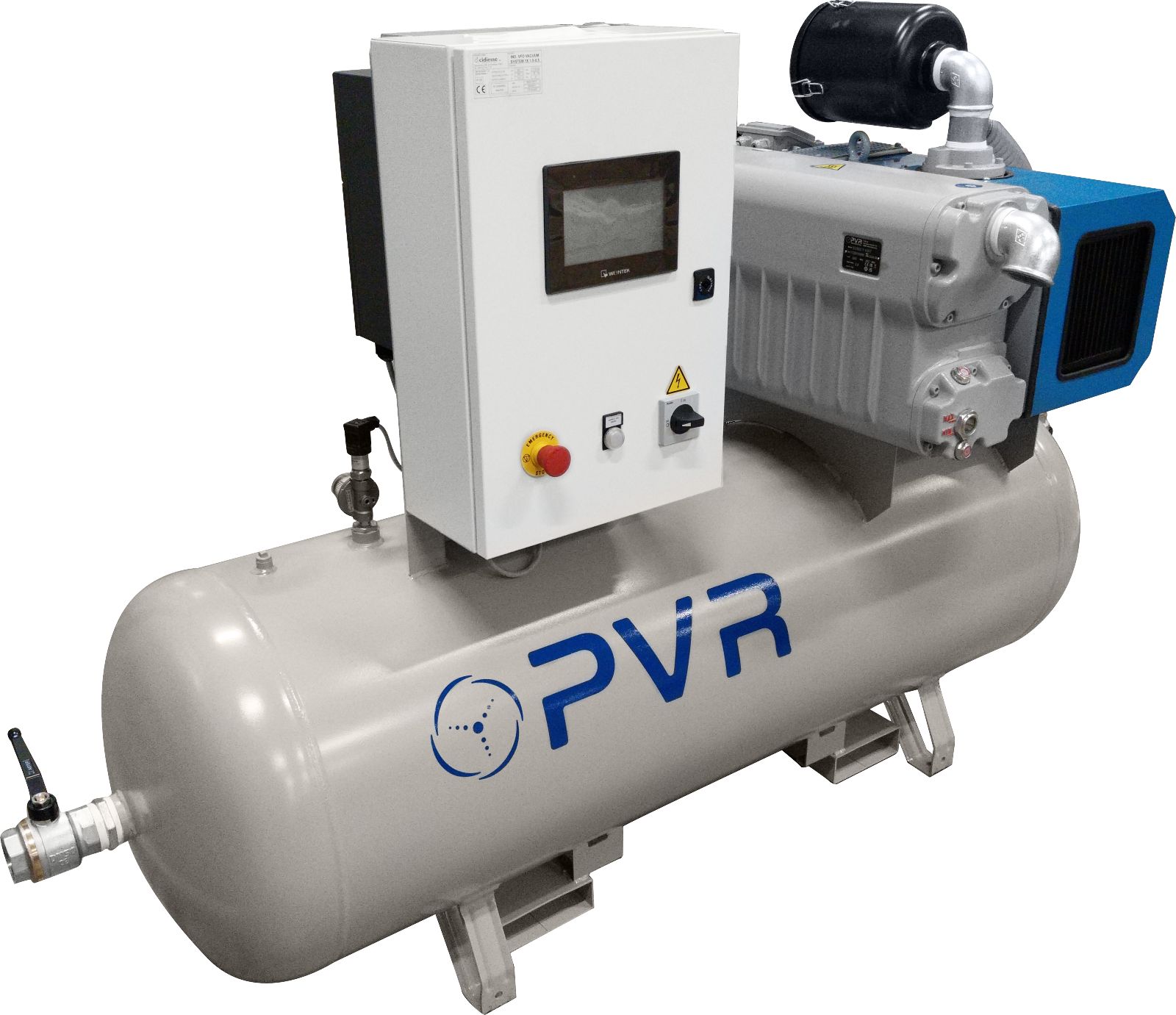

Single pump system		CSKZ 100-15	CSKZ 100-35	CSKZ 500-45	CSKZ 500-65	CSKZ 500-105	CSKZ 500-160	CSKZ 500-205	CSKZ 500-300
Nominal pumping speed	cfm	12,4	24,7	34,1	48,9	74,2	107,1	146	211,9
Ultimate pressure (abs) PVL - EU	torr	≤ 0,375	≤ 0,375	≤ 0,375	≤ 0,375	≤ 0,375	≤ 0,375	≤ 0,375	≤ 0,375
Ultimate pressure (abs) PVL B - EU B	torr	≤ 15	≤ 15	≤ 7,5	≤ 7,5	≤ 7,5	≤ 7,5	≤ 7,5	≤ 7,5
Tank capacity	US gal	26,4	26,4	132,1	132,1	132,1	132,1	132,1	132,1
Motor power	Hp	1	1,47	2	3	4	5,36	7,37	10

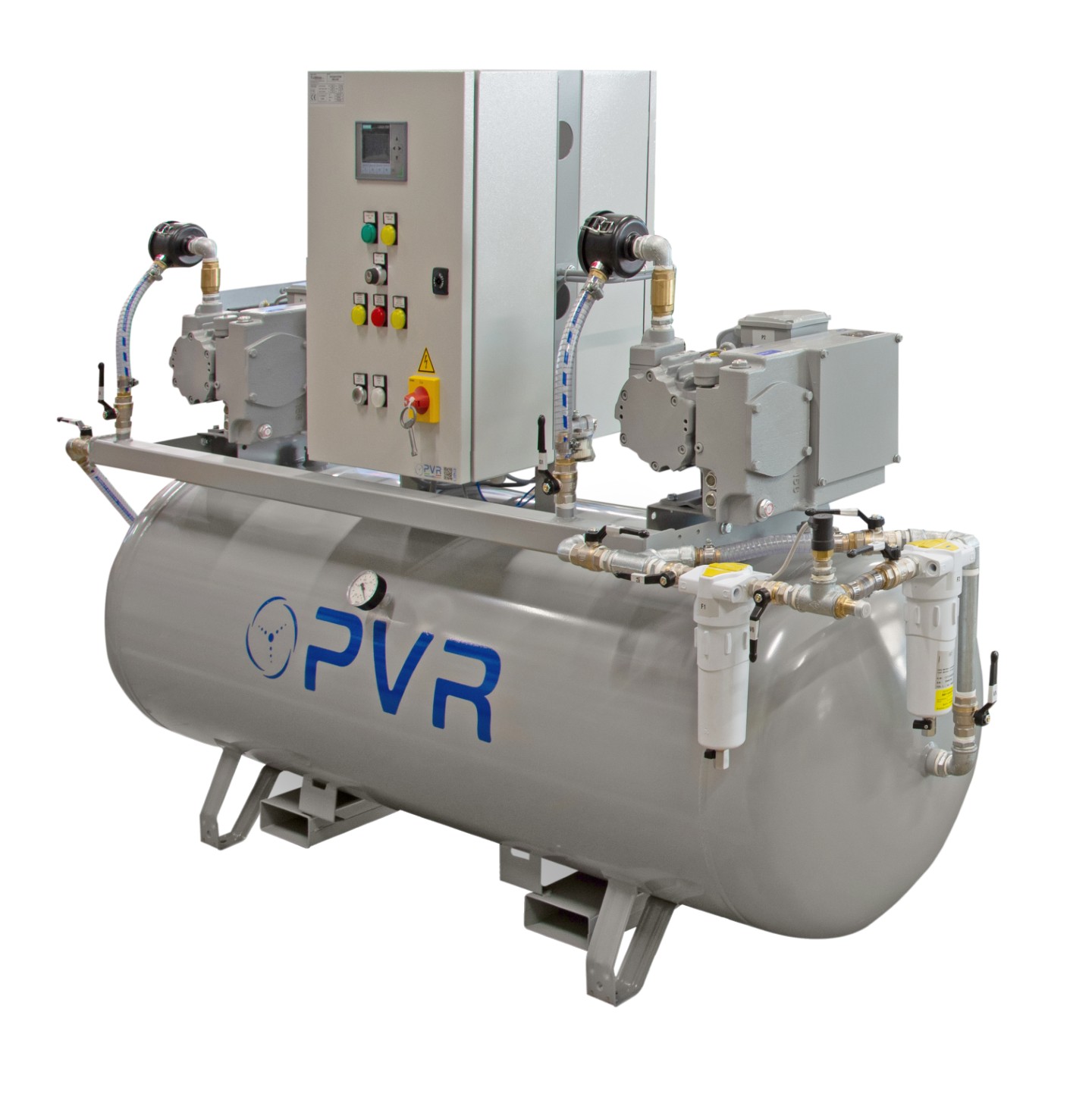

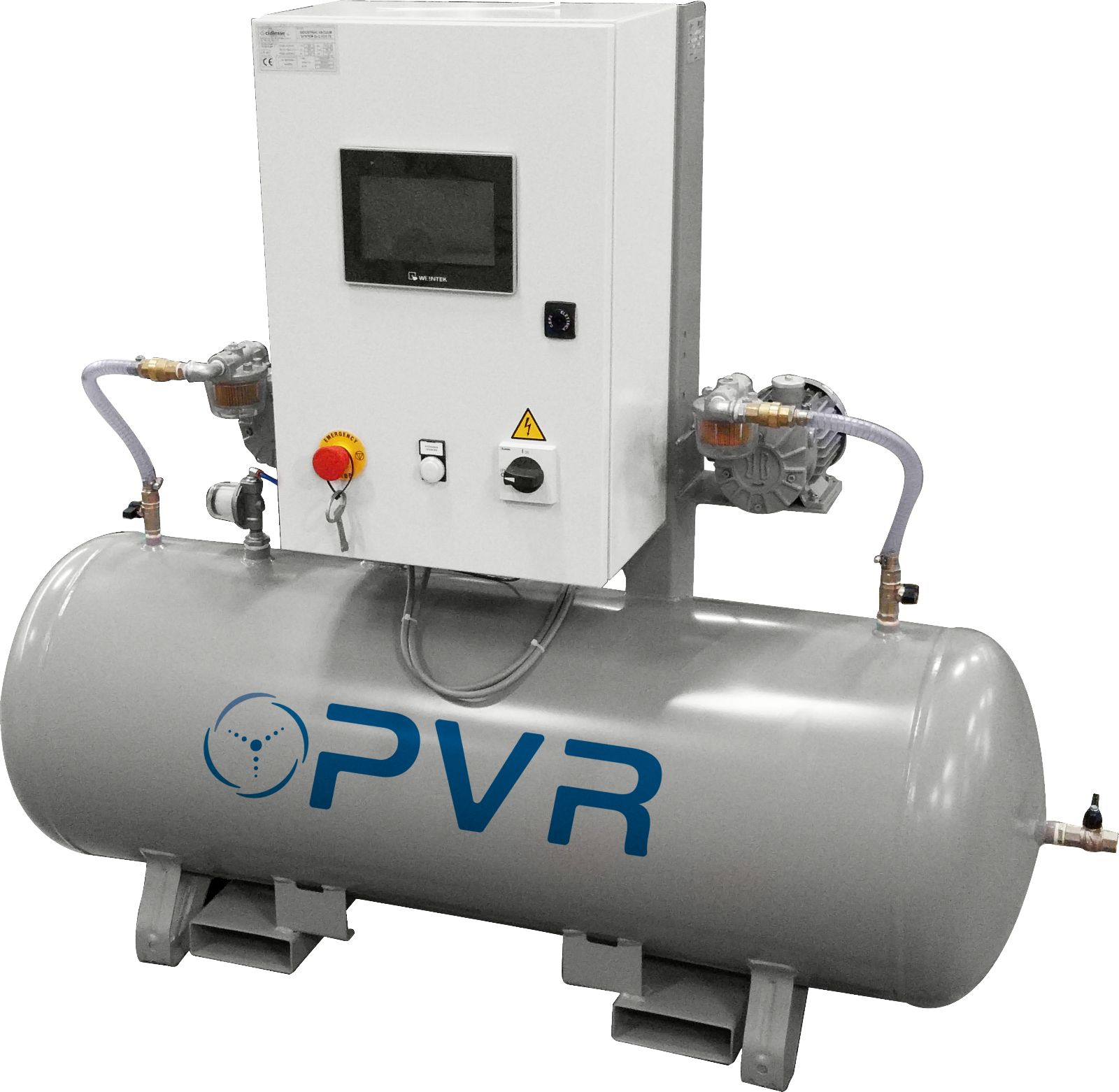

Double pump system		CDKZ 500-15	CDKZ 500-35	CDKZ 500-45	CDKZ 500-65	CDKZ 500-105	CDKZ 500-160	CDKZ 1000-205	CDKZ 1000-300
Nominal pumping speed	cfm	2x12,4	2x24,7	2x34,1	2x48,9	2x74,2	2x107,1	2x146	2x211,9
Ultimate pressure (abs) PVL - EU	torr	≤ 0,375	≤ 0,375	≤ 0,375	≤ 0,375	≤ 0,375	≤ 0,375	≤ 0,375	≤ 0,375
Ultimate pressure (abs) PVL B - EU B	torr	≤ 15	≤ 15	≤ 7,5	≤ 7,5	≤ 7,5	≤ 7,5	≤ 7,5	≤ 7,5
Tank capacity	US gal	132,1	132,1	132,1	132,1	132,1	132,1	264,2	264,2
Motor power	Hp	2,7x1	2,7x1,47	2,7x2	2,7x3	2,7x4	2,7x5,36	2,7x7,37	2,7x10
