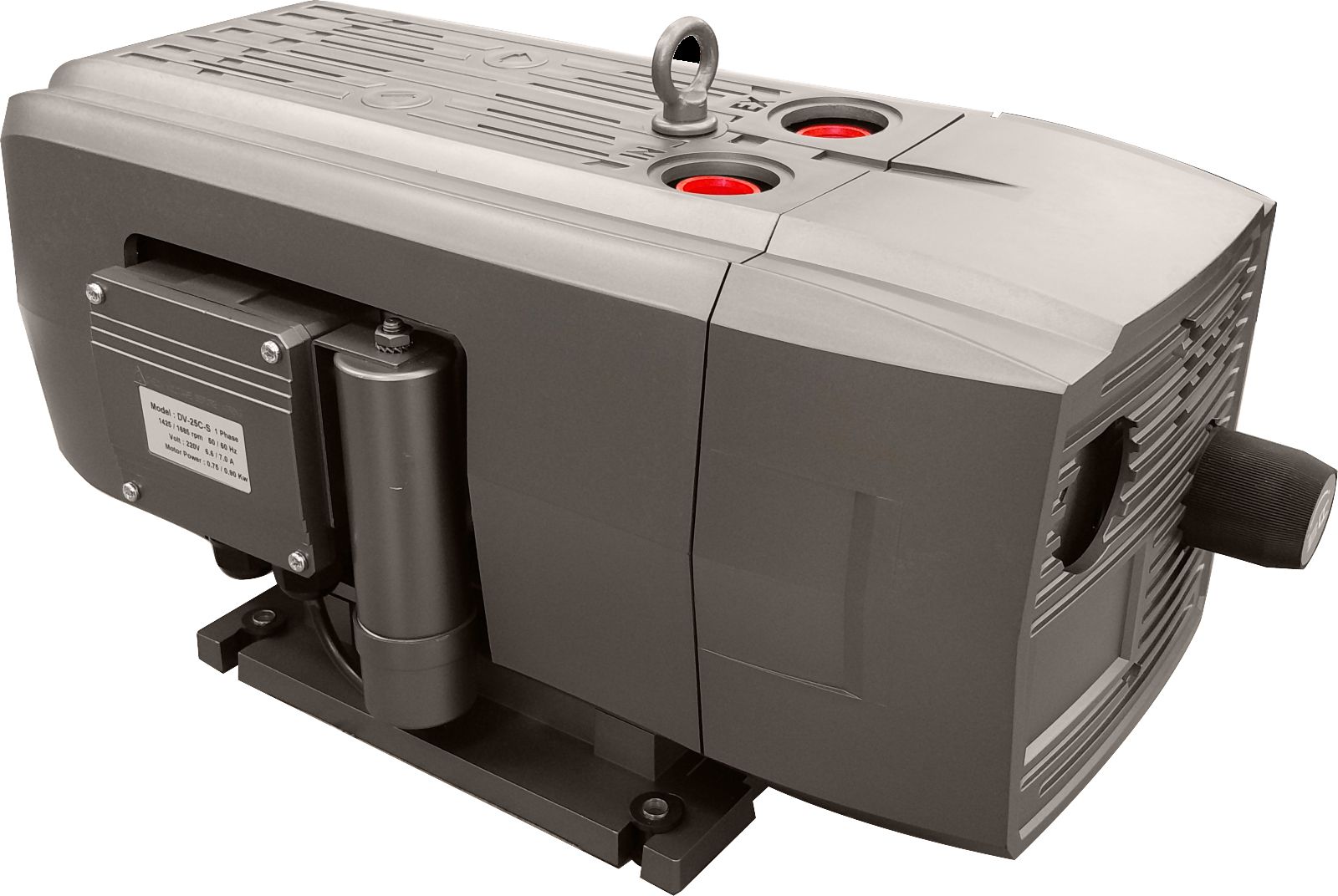

CD Series
Single Stage Dry Vacuum Compressors
The CD Series is formed by dry vane compressors extremely compact and light thanks to their monobloc design resulting in very quiet operation and vibration free mounting. They can be supplied complete with inlet and exhaust filters. A special vacuum tight version is available for gas analyzer equipment.
Dry Vane Technology
The dry vane compressors are 100% oil free (eco-friendly), easy to plug in and ready to work thanks to the pressure regulation valve and the integrated suction filter.
Other features:
- Low maintenance costs
- Reliability
- Compact design
- Continuous operation up to 0,6 PSIG
| CD 3 | CD 6 | CD 8 | CD 16 | CD 25 | CD 40 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ~1 | ~3 | ~1 | ~3 | ~1 | ~3 | ~1 | ~3 | ~1 | ~3 | ~1 | ~3 | ||

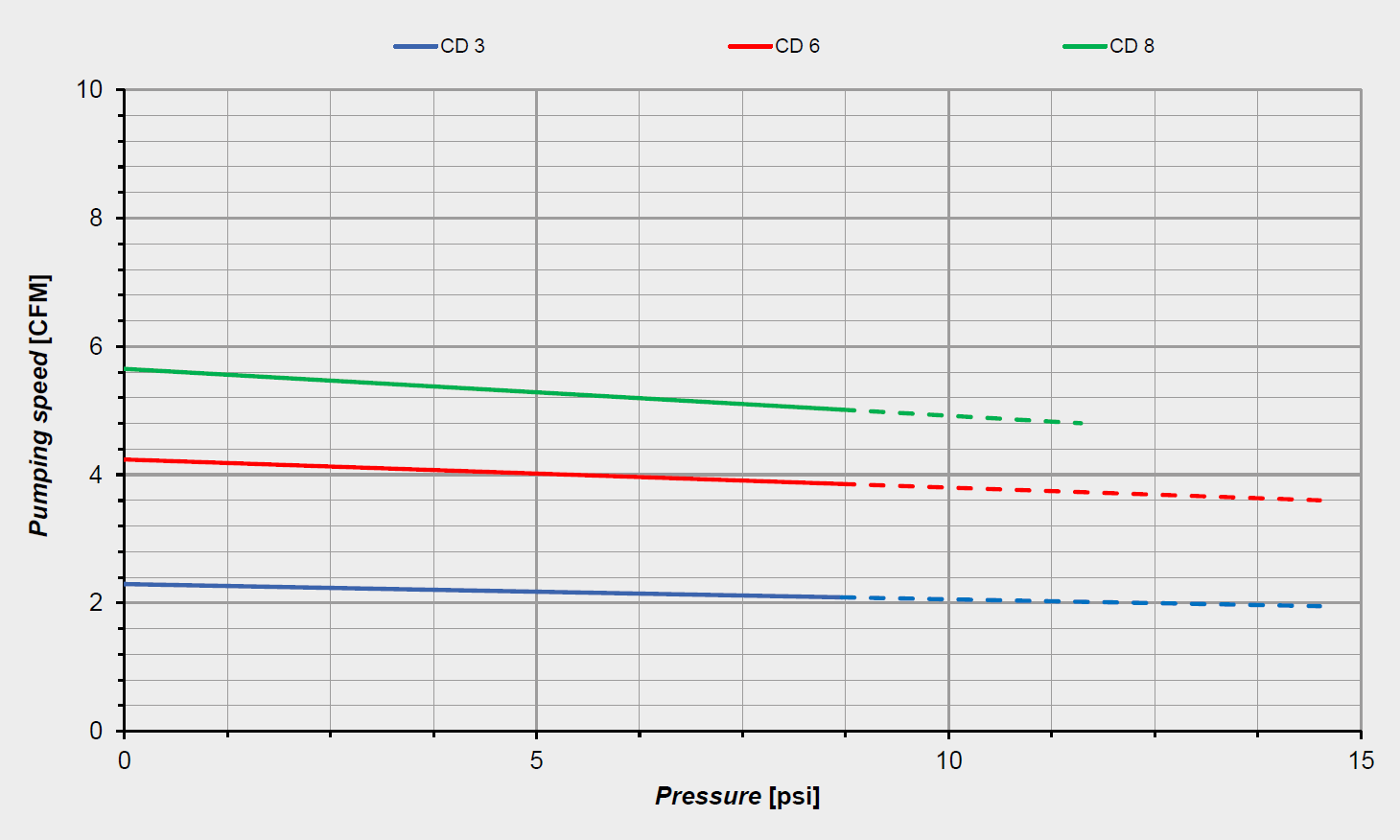

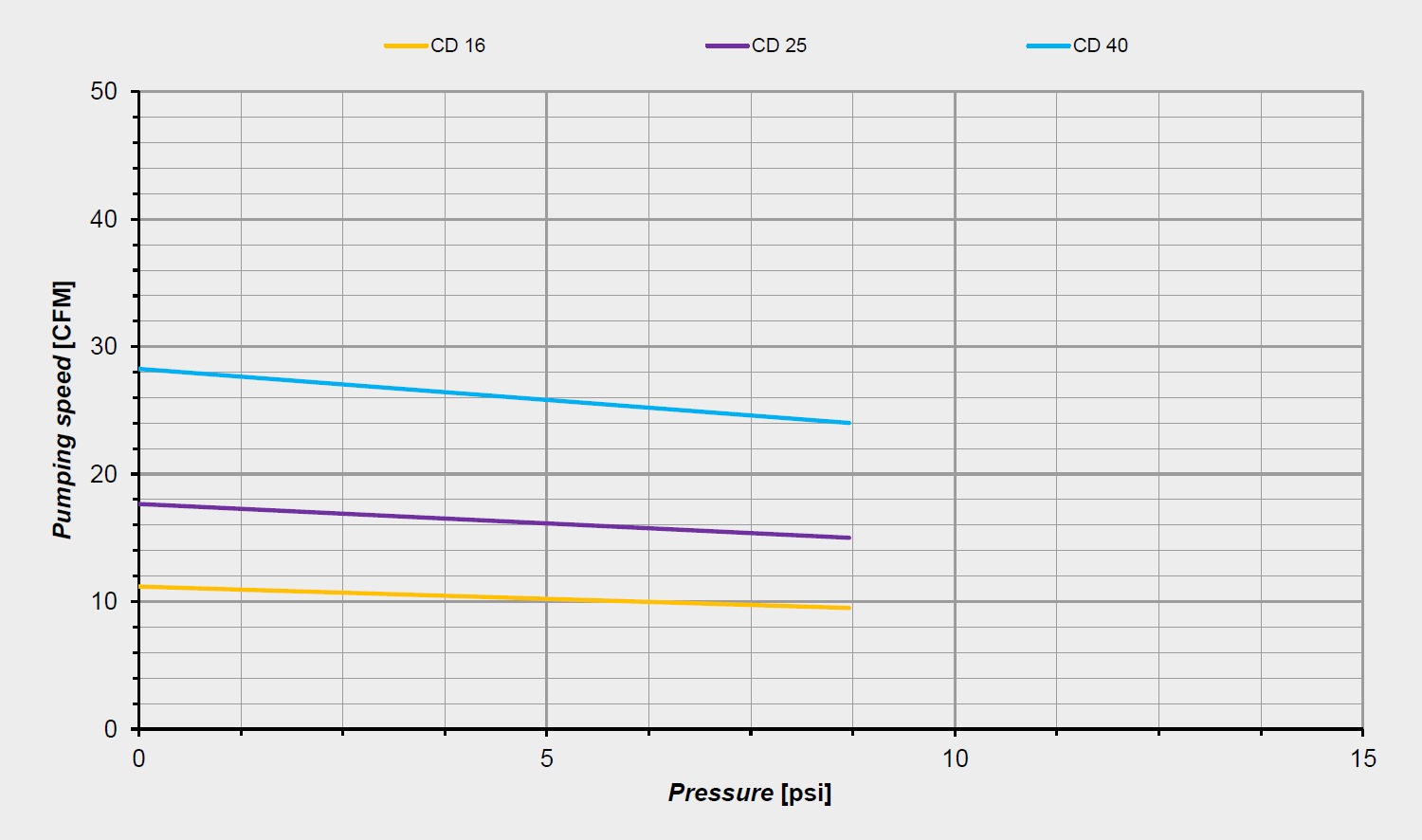

| Nominal pumping speed | cfm | 2,3 | 4,2 | 5,7 | 11,2 | 17,7 | 28,3 | ||||||
| Ultimate pressure (rel) | PSIG | +14,5 | +14,5 | +36,2 | +31 | +31 | +31 | ||||||
| Motor power | Hp | 0,2 | 0,5 | 0,47 | 0,94 | 1,2 | 2 | ||||||
| Motor speed | rpm | 3600 | 3600 | 3600 | 1800 | 1800 | 1800 | ||||||
| Dimensions (L x W x H) | in | 9x6x6,8 | 9,4x6x6,8 | 9,8x6,1x6,8 | 18x9,4x9 | 20,7x10,1x10,2 | 22,8x10,1x10,2 | ||||||
| Total weight | lbs | 10,8 | 15,9 | 17,6 | 55,1 | 72,8 | 79,4 | ||||||
