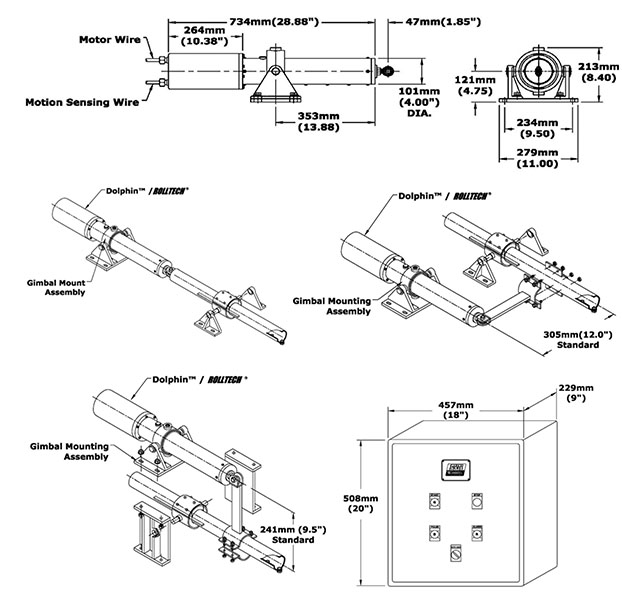

The Dolphin™ Actuator is a basic model in a series of highly specialized shower actuators optimized for their respective range of applications. The oil lubricated "Ball-Reverser" design has three balls in tracks in a ball reverser screw. The actuator can develop 1000 lbs of thrust. Length of stroke is fixed as determined by the length of screw flights installed in the unit. Dimensions are identical to the ROLLTECH® Actuator.
Unit of Measure

Specifications

Brands

 N/A Dolphin™ Vooner FloGard®

Shower Length

 N/A Up to 278 inUp to 7 m

Standard Stroke Length

 N/A 6 in12 in152 mm305 mm

Warranty

 N/A 12 months

Technical Data

Type

 N/A Dolphin™ actuator for oscillating paper machine showers to achieve complete coverage cleaning.

Manufacturer

 N/A Vooner Paper Machinery, Greeneville, TN, USA

Wetted Parts

 N/A All Wetted Parts 316 Stainless Steel (SS)

Lubrication

 N/A The Dolphin™ actuator ships with oil and will not need lubrication during it's life.

Maintenance

 N/A None

Control Panel Height

 N/A 20 in

Control Panel Width

 N/A 18 in

Control Panel Depth

 N/A 9 in

Control Panel Alternating Current (AC) Voltage

 N/A 110 V

Control Panel

 N/A Only needed for variable stroke speed applications. NEMA 4X, door safety switch, material fiberglass. 110VAC power, (2) 4 amp thermal breakers, PLC is Modicon Twido start/stop button, manual/ auto switch. Three (3) lights: start, pulse, and alarm, 4-20 ma connections for DCS.

Motor Power (Variable Speed)

 N/A 0.013 hp0.0097 kW

Motor Alternating Current (AC) Voltage (Variable Speed)

 N/A 220 V

Motor Phase (Variable Speed)

 N/A 3

Motor Current (Variable Speed)

 N/A 0.3 A

Motor Frequency (Variable Speed)

 N/A 50 Hz60 Hz

Motor Speed (Variable Speed)

 N/A 60 rpm72 rpm

Note for Motor (Variable Speed)

 N/A An integral gear box is attached for stroke rate.

Motor Power (Fixed Speed)

 N/A 0.013 hp0.0097 kW

Motor Alternating Current (AC) Voltage (Fixed Speed)

 N/A 110 V220 V

Motor Phase (Fixed Speed)

 N/A 1

Motor Current (Fixed Speed)

 N/A 0.2 A0.4 A

Motor Frequency (Fixed Speed)

 N/A 50 Hz60 Hz

Motor Speed (Fixed Speed)

 N/A 60 rpm72 rpm

Note for Motor (Fixed Speed)

 N/A An integral gear box is attached for stroke rate.
Motion Sensing Direct Current (DC) Voltage1 N/A 24 V

Proximity Switch

 N/A Note two wires from motor housing, a motor lead and a proximity switch lead clearly marked as to how to connect. A separate power connection, 110 VAC, is needed for a panel board if used.
Actuator Weight2 N/A 50 lb

Motor Cover Temperature

 N/A 43 to 54 ºC110 to 130 ºF

Maximum Motor Shell Temperature

 N/A 100 ºC212 ºF

Note for Motor Temperature

 N/A A water cooled jacket is available for higher temperature environments.

Noise

 N/A < 80 dB

Additional Information

Additional Information

 N/A Lightweight and economical - ideal where fixed stroke length and stroke rate is acceptable - no control panel required
  • Compact design - for easy installation and maintenance.
  • Four (4) fixed speeds or adjustable stroke rate available.
  • Variable speed requires control panel, fixed speed does not require control panel.
  • "Ball Reverser" design is simple, no reversing switches, no need to reverse motor, instant turn around at end of stroke.
  • "Gimbal Mounting" for reduced load during oscillation.
  • Integral felt protection proximity switch recommended.
The Dolphin™ Actuator is mounted in a gimbal mounting near the balance point of the actuator allowing some multi-directional movement which provides a non-binding movement of the actuator. This arrangement is very forgiving of slight misalignment of the actuator and shower and prevents premature failure due to excessive binding loads. Split bearings with UHMW Polyethylene liners and anti-rotation bars keep the shower in correct position and allow removing the shower from the paper machine and replacing it again without realigning the bearings.

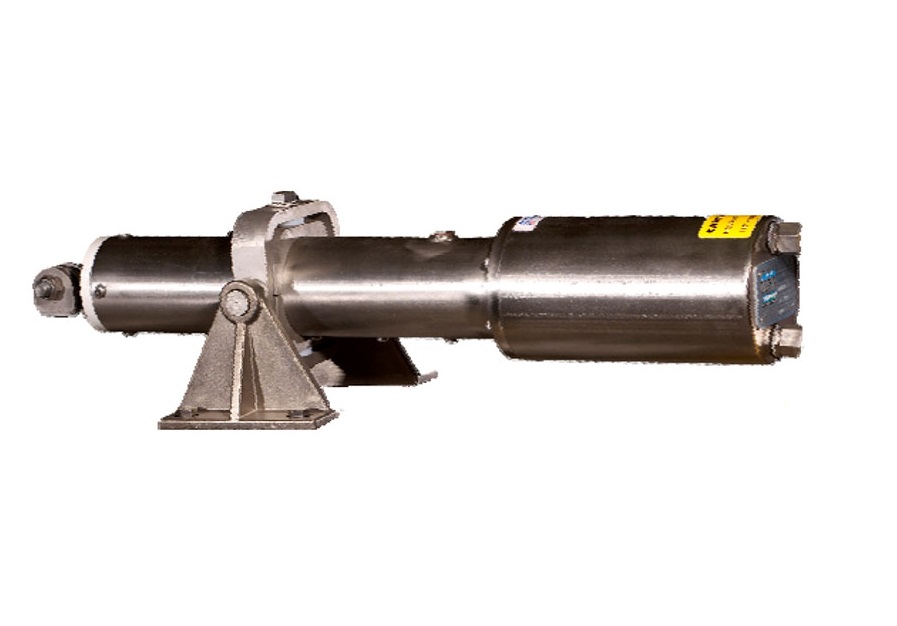

Dolphin™ shower actuator with gimbal mounting attached.

Service

Service

 N/A
  • Spare actuators, parts, and rebuild services are located in Greeneville, Tennessee.
  • Onsite technical service is available from Greeneville, Tennessee.
  • 1 Optional 110 VAC for DCS systems.
  • 2 Attached gimbal mounting weight 12 lbs (without trunnions), total assembly weight 62 lbs.
