Cleans nozzles and inside of shower pipe and automatically flushes out the debris. Reliable protection from plugged nozzles tailored to shower water quality. Programmable cleaning cycle and manual activation.
Unit of Measure

Specifications

Brands

 N/A Vooner FloGard®

Warranty

 N/A 12 months

Technical Data

Type

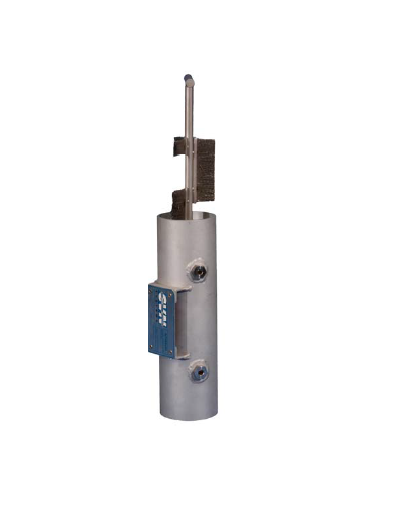

 N/A The Automated Brush Rotation System for stationary and oscillating brush paper machine showers to achieve complete coverage cleaning.

Manufacturer

 N/A CVN Vooner Paper Machinery, Greeneville, TN, USA

Wetted Parts

 N/A All Wetted Parts 316 Stainless Steel (SS)

Lubrication

 N/A No Lubrication Required, O-Ring Seals.

Maintenance

 N/A None

Control Panel Height

 N/A 18 in

Control Panel Width

 N/A 16 in

Control Panel Depth

 N/A 9 in

Control Panel

 N/A NEMA 4X, door safety switch, material fiberglass. 110 VAC power, (2) 4 amp thermal breakers.
PLC is Modicon Twido Start and stop buttons, manual push button. Two (2) lights: Run and alarm. No connection for DCS. International voltages available.

Motor Power (Fixed Speed)

 N/A 0.013 hp0.0097 kW

Motor Alternating Current (AC) Voltage (Fixed Speed)

 N/A 110 V

Motor Phase (Fixed Speed)

 N/A 1

Motor Current (Fixed Speed)

 N/A 0.4 A

Note for Motor (Fixed Speed)

 N/A An integral 45:1 gear box is attached for brush rotation speed of 1.33 rpm.

Flush Valve Type

 N/A 1" Pneumatic Ball Valve with Direct Mount Solenoid

Air Connection

 N/A 1/4 in

Air Input Pressure

 N/A 125 psi

Air Flow Rate at 120 Pound Per Square Inch (psi) Pressure

 N/A 0.9 L/min

Solenoid Power

 N/A 20 W

Solenoid Alternating Current (AC) Voltage Connection to Control Panel

 N/A 120 V
Weight1 N/A 40 to 60 lb

Maximum Motor Shell Temperature

 N/A 100 ºC212 ºF

Noise

 N/A < 80 dB

Additional Information

Additional Information

 N/A
  • Designed to fit all new and existing CVN brush showers.
  • Automatic cleaning cycle - programmable from 1-12 hours between cleaning.
  • Automated pneumatic purge valve to flush debris out of the shower.
  • Operator initiated cleaning at the push of a button.
  • Brush mechanism and flush valve are separate which allows full velocity flushing cleaning cycle and unrestricted operation of the brush mechanism.
  • CVN Brush Showers and Shower-in-Pipe both stationary and oscillating are available with a wide variety of SS needle and fan nozzles. CVN Actuator/Oscillators are available.

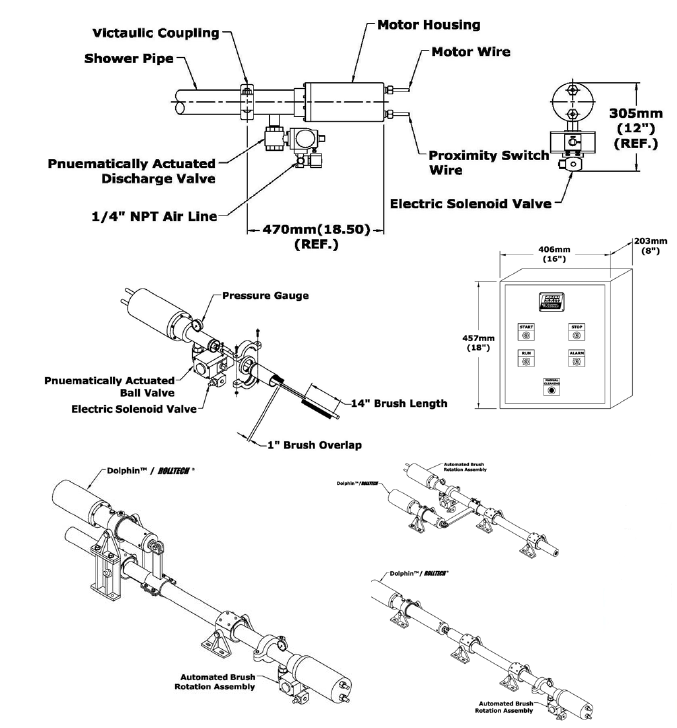

The Automated Brush Rotation System is mounted and supported on the end of the shower pipe with a victaulic coupling. The pneumatic flushing valve may be located on either end of the shower depending if a shower actuator/ oscillator is also installed on the system.

The victaulic coupling between pipe and brush mechanism allows easy removal of the brush mechanism. The brush mechanism is self supporting within the shower pipe and the brushes and brush rod are in 316L stainless steel. All other wetted parts are in 316L stainless steel.

The brush rotation when activated rotates five complete revolutions, then rotates the opposite direction clockwise/ counter clockwise on the next activation cycle. This prevents a broom effect on the brushes. Shower nozzle tips extend slightly into the inside shower pipe for effective cleaning without deforming the brushes.

The Automated Brush Rotation System is designed to fit all new and existing CVN brush showers with manual brush rotating mechanisms. Simply remove the coupling, replace the shaft extension, and reassemble shower.

Service

Service

 N/A
  • Spare actuators, parts, and rebuild services are located in Greeneville, Tennessee.
  • Onsite technical service is available from Greeneville, Tennessee.
  • 1 Dependent on shower size.
